Parallax Inc. | A-000000-00104
Development kit with two mechanical relays. Control your household devices such as a fan or light bulbs with this kit which is the intermediary between your controller board and your devices.
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

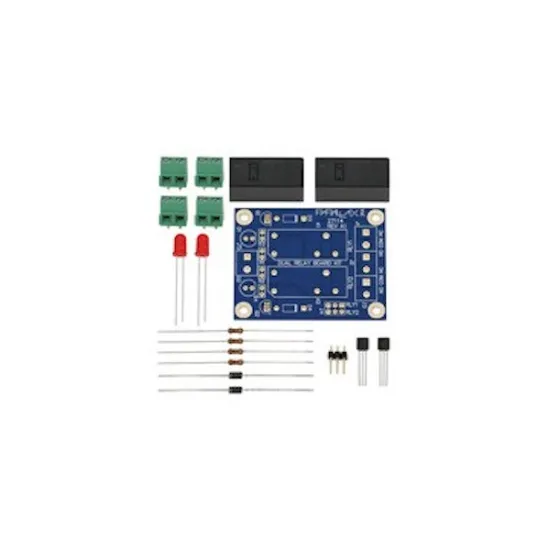

Dual Relay Board Development Kit

This Dual Relay Board kit allows you to control household devices (up to 8A) while keeping them isolated from the microcontroller. You'll be able with this Dual Relay Board kit to turn lights, fans and motors on/off and learn about home automation.

Each relay is controlled by a 3pin header (easy to connect using a servo cable) that makes it easy to connect with the main development board such as the Board of Education Shield for Arduino or the Eddie Control Board.

LEDs indicate relay status.

The following video shows a tutorial about the Dual Relay Board kit:

Specifications of the Dual Relay Board Development Kit

  • The kit needs to be mounted and requires soldering competency.
  • Allows to control independently two electrical devices.
  • 2 relays Omron G2RL-14-DC12, SPDT, 12 A, 12 VDC
  • Provides isolation between microcontroller and device being controlled
  • Easy screw terminals for relay contact and power connections
  • Relays require a 12V (85mA) power supply
  • Communication: TTL/CMOS Logic
  • Dimensions : 58.4 x 45.8 x 1.8 cm
  • Operating temp range: from -40 to +85 °C (-40 to +185 °F)



When assembled, the Dual relay kit looks like as follows:

Dual Relay board kit assembled

To download the PDF technical documentation of the kit, click on the following image:

technical documentation of the Dual Relay Board Development Kit
