6x6 Wild Thumper Controller

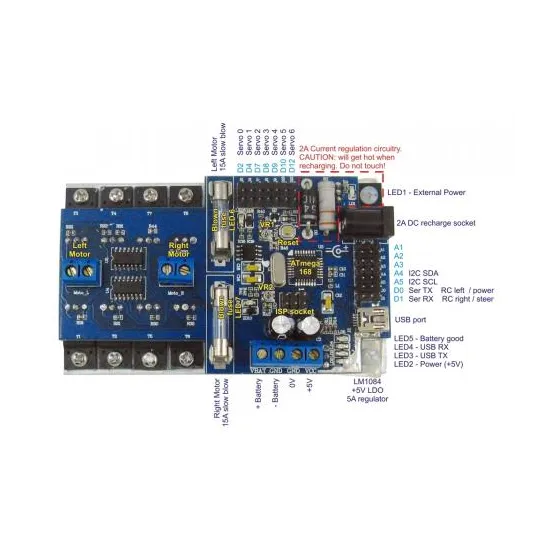

This small controller is big on muscle. Dual 15A continuous FET "H" bridges with electronic braking, current monitoring and fuse protection. The 5V regulator is rated at 5A to drive up to 6 heavy duty servos and a software controlled battery charging circuit allows easy charging of a 7.2V NiMh RC battery pack. The ATmega168 comes pre-loaded with the Arduino bootloader and sample software.
Dimensions : 100mm x 60mm x 35mm
This controller board is not produced anymore. It has been replaced by the T-Rex controller.
