4 Motors Controller Board for Dagu Rover 5
4 Motors Controller Board for Dagu Rover 5

4 Motors Controller Board for Dagu Rover 5

Dagu | A-000000-00577
Motor Controller Board for 4 DC motors 2A of the Rover 5 robotic chassis
DISCONTINUED ARTICLE.
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

This controller board for 4 DC motors has been initially designed for Rover 5 chassis robots.

Technical specifications of the 4 motors controller board for Rover 5 chassis

  • Includes 4 mixing circuits
  • Easy to use control logic
  • Current monitoring for each channel
  • Designed originally for the Rover 5 chassis
  • 4x low resistance FET 'H' bridges
  • Each channel rated for 2A stall current
  • Quadrature encoder mixing circuitry

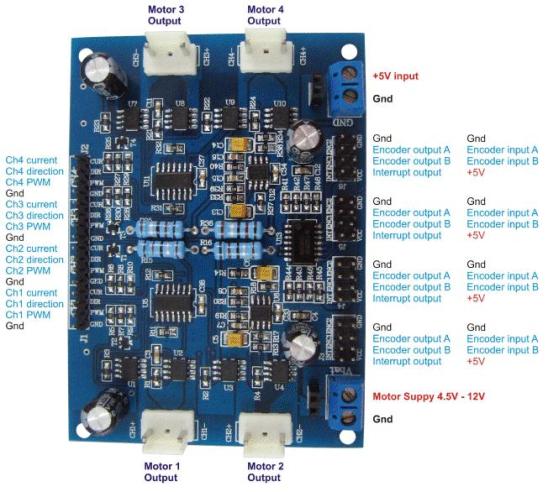

Schema of the 4 channel motor controller for Rover 5

Documentation of the 4 motors controller board for Rover 5 chassis

Click on the following image to download the technical documentation of the 4 motors controller board for Rover 5 chassis.

PDF technical documentation of the 4 motors controller board for Rover 5 chassis
