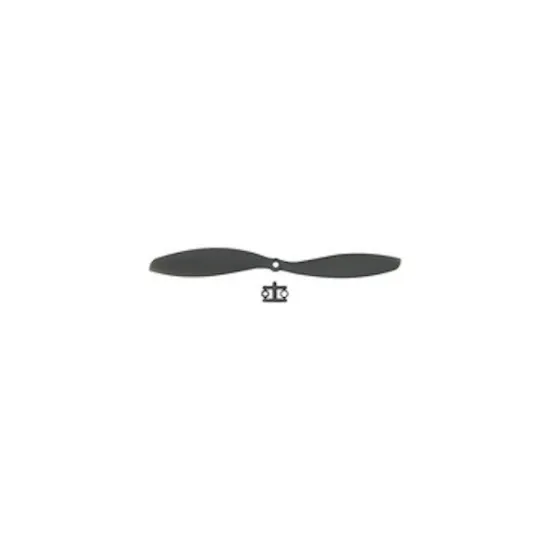

APC Propeller 10x4.7 Pusher
APC Propeller 10x4.7 Pusher

APC Propeller 10x4.7 Pusher

Parallax Inc. | A-000000-00524

The APC Propeller 10x4.7 Pusher is a composite nylon propeller reinforced with carbon fibers, making it light, stiff and robust. Its characteristics make the APC Propeller 10x4.7 Pusher perfectly suited for UAVs such as the ELEV-8 Quadcopter UAV.

End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

Presentation of the APC Propeller 10x4.7 Pusher

The APC Propeller 10x4.7 Pusher is manufactured through a pultrusion process which allows for a high density of carbon fibers (60%). During molding, these 1/2" long fibers are oriented in the propeller span-wise axis , making the APC 10x4.7 Pusher extremely stiff and robust. The high stiffness helps in avoiding vibration resonance with the motors. Thanks to the robustness of its composite, the APC Propeller 10x4.7 Pusher is lighter than standard propellers and has better aerodynamic properties, making it perfectly suited for UAVs such as the ELEV-8 Quadcopter UAV.

Pusher-type propellers, by opposition to Puller-type propellers such as the APC Propeller 10x4.7 Slow Flyer move the air in the opposite direction. For a quadcopter UAV, two pairs of Pusher/Puller propellers are used with opposite rotations. This gives the UAV stability during stationary flight.

Features of the APC Propeller 10x4.7 Pusher

  • Pultrusion manufactured
  • Precise hole alignments
  • Couter-clockwise rotation
  • Computer-optimized design for better lift and less noise
  • Light composite material for better efficiency and longer life
  • Carbon-fibers reinforcements to avoid resonance and improve stability

Technical specification of the APC Propeller 10x4.7 Pusher

  • Length: 10" (25.4cm)
  • Pitch: 4.7" (11.9cm)
  • Maximum speed: 6500 rpm
  • Tensile strength: 24.0 KSI
  • Tensile elongation: 6%
  • Flexural strength: 38.0 KSI
  • Flexural modulus: 2.3 MSI
