Chassis for 2W miniQ mobile robot

DFRobot | A-000000-00035

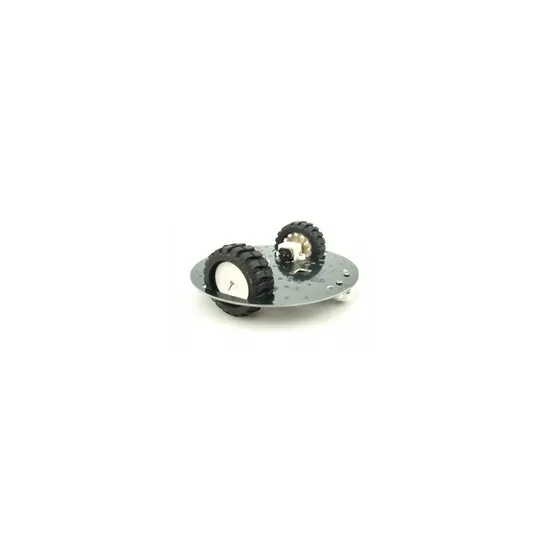

This two wheels chassis is the base of a 2W miniQ mobile robot. DISCONTINUED ARTICLE.
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

The miniQ robots are specifically designed for educationnal purpose. Their small size makes it easy to use on a desk or in competitions.

The robot chassis for 2W miniQ mobile robot is easy to mount and allows you to build your own miniQ robot by adding a Romeo board.

Or you can customize your mobile robot by mounting the Arduino board of your choice on it and a motor shield. Then, the possibilities of the whole Arduino world are open to you !

Technical specifications of the robot chassis for 2W miniQ mobile robot

2W miniQ mobile robot chassis

Dimensions:

  • Diameter : 122mm
  • Distance between chassis and floor: 15mm



Motor specifications:

  • 13000 rpm for the motor, without load
  • gear ratio 50:1, so wheel maximal speed: 260 rpm
  • Current without load : 40mA at 6V
  • Stall current : 360mA at 6V
  • Torque: 7 N.cm



Contents:

  • 2 motors
  • 2 rubber wheels, diameter 42mm
  • 2 motor brackets
  • 1 chassis for miniQ 2W
  • 1 caster wheel
  • 1 screw set
