NXT SuperPro Prototype Board
Solderless interface component for your PC or your NXT robot, to control your own electronic creation.
The HiTechnic SuperPro Sensor for NXT is an easy-to-use platform for building your own sensors and safely experiment with electronic that can be directly connected to the LEGO NXT via an NXT sensor port.
The breadboard and electronics parts are not included in this product. See the HiTechnic SuperPro Experimenter's Kit A-SP to have everything included.
SuperPro Sensor for LEGO Mindstorms NXT

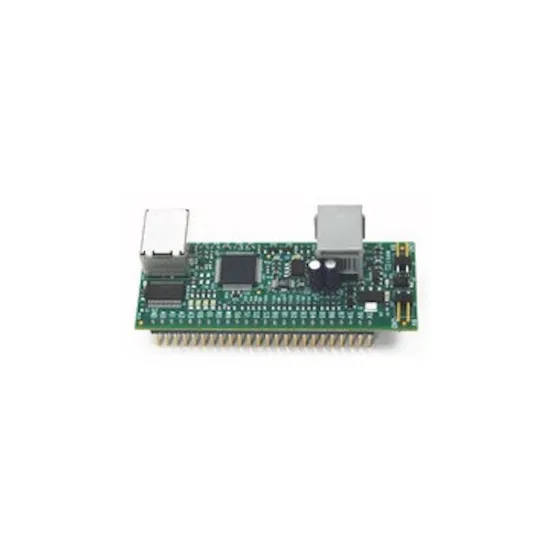

The SuperPro Board is designed to plug into a solderless breadboard giving you the perfect platform to create your own NXT sensors. The HiTechnic SuperPro Prototype board connects to an NXT intelligent brick sensor port so your NXT programs can send commands to and read data from the SuperPro. NXT programming is easy with the NXT-G programming block for the SuperPro Prototype. Libraries and piece of code are available for RobotC, NXC or LabVIEW (see below to download).
SuperPro Sensor for LEGO Mindstorms NXT for your PC
The SuperPro will also connect directly to a PC using its USB port for high speed I/O. With the SuperPro onboard program environment you can write programs on a PC using SuperPro C (SPC) and download and run your programs directly on the SuperPro.
Technical specification of the SuperPro Sensor for Lego Mindstorms NXT
The technical specification of the SuperPro Sensor Board for Lego Mindstorms NXT are as follows.
- 4 analog inputs - 10 bit A/D, 0 - 3.3v
- 2 analog outputs 0-3.3v, 1-8191Hz, 7 analog modes:
- DC voltage level
- Sine wave
- Square wave
- Positive going sawtooth
- Negative going sawtooth
- Triangle wave
- PWM voltage
- 8 digital I/O bits that can be configured as read or write
- 6 digital strobe outputs
- 1 pre-configured read strobe
- 1 pre-configured write strobe
- 4 can be set to high or low logic level
- 3.3v, 5v and 9v power outputs
- Onboard memory
- 12k user RAM
- 56k user program FLASH
- 1Mb external storage FLASH
- Onboard Firmware Features
- NXT I/O data and command connection
- USB I/O
- Onboard program execution
- Multiple simultaneous user processes
- Onboard datalogging
Programming the SuperPro prototype board
NXT-G block, NXC libraries and Labview codes are available to program the SuperPro prototype board for Lego Mindstorms NXT. Click on the following image to download the programming pack and a PDF handbook on how to program the SuperPro Prototype Board.
