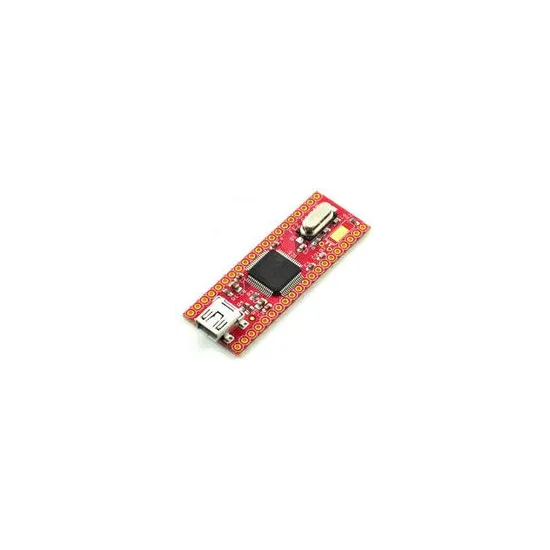

Production board FEZ Cerb40

GHI Electronics | A-000000-00117
This board is similar to the Gadgeteer Fez Cerberus but without the Gadgeteer sockets. This board is ideal for low-production run and for easy prototyping. The Fez Cerb40 is programmable using the .NET micro Framework.
€24.58
Tax included

Including €0.01 for ecotax

Quantity
Get a quote online

Size Chart
x
Size Chart

The Fez Cerb40 mainboard

The Fez Cerb40 mainboard comes in a compact DIP40 format and does not provide Gadgeteer sockets, i.e. we cannot connect the standard Gadgeteer modules. The Fez Cerb40 uses the same Cortex M4 processor as the Gadgeteer Fez Cerberus mainboard and like her older sister is also programmable using the .NET Micro Framework. Once the prototype is easily done using the Gadgeteer Fez Cerberus, developers use this Fez Cerb40 mainboard as a permanent board in small production batches where sensors are soldered. This Fez Cerb40 board is the compact version of the Gadgeteer cards for production purpose.

The Fez Cerb40 mainboard is entirely open-source (hardware and software).

The Fez Cerb40 mainboard is programmable using the .NET micro Framework, .NET Gadgeteer and also native code.

Technical specifications of the Fez Cerb40 mainboard

The technical specificatins of the Fez Cerb40 mainboard are as follows:

  • .NET Micro Framework 4.2 (supporting C# and Visual Basic)
  • 168Mhz 32bit STM32F4 processor with floating point.
  • 1MB FLASH and 192KB RAM.
  • Runs FEZ Cerberus software.
  • Very compact yet exposing 36IOs.
  • Software and hardware support, but not limited to, PWM, AnalogIn, AnalogOut, UART, SPI, I2C, CAN, USB Client, USB Host.
  • Dimensions: 5,08 cm x 1,9 cm (2.0 x 0.75 inches)
  • Power: 3,3 V
  • Available power modes: Active, Idle, Hibernate
  • The Fez Cerb40 mainboard is ROHS and Lead-free compliant

Unlike other Gadgeteer boards, this product is for users with hardware and soldering experience

Technical documentation of the Fez Cerb40 mainboard

All the necessary information to program the fez Cerb40 mainboard is available in the Gadgeteer Fez Cerberus starter Guide. Click on the following image to download this guide.
