Gadgeteer FEZ Cerberus Mainboard

GHI Electronics | A-000000-00487
This Gadgeteer mainboard is 100% open-source, has 8 sockets and features a 32bits Cortex M4 processor clocked at 168 Mhz.
Quantity
Get a quote online

Size Chart
x
Size Chart

The Gadgeteer Fez Cerberus mainboard is compact , powerful and is an ideal solution for robotics

The Gadgeteer Fez Cerberus mainboard is a card that has been specifically designed for mobile robotics, UAV or remote sensors monitored by the Cloud. The board is small, provides 8 sockets, features a 32 bit Cortex M4 processor and has a heap memory of 112 KB, which represents a large memory space for network and internet connection.

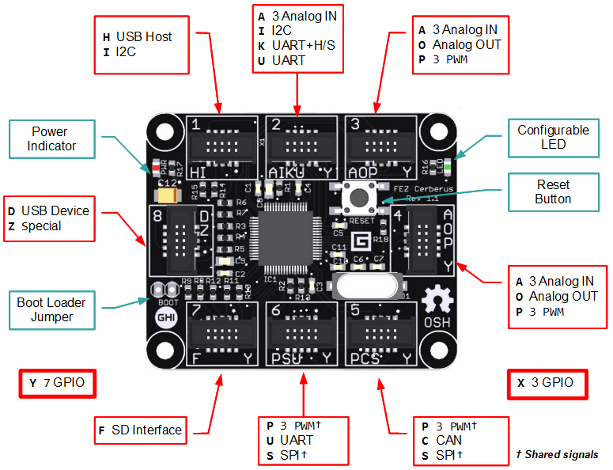

functional mal of the Gadgeteer Fez Cerberus mainboard

Technical specifications of the Gadgeteer Fez Cerberus mainboard

The technical specifications of the Gadgeteer Fez Cerberus mainobard are as follows:

  • 8 Gadgeteer Sockets including types: X, Y, A, C, D, F, H, I, K, O, P, S, U and Z.
  • Configurable on-board LED.
  • 168Mhz 32bit processor Cortex M4 with floating point
  • 1MB FLASH, over 300K for user's code
  • 192KB RAM, 112KB for user's heap
  • Full TCP/IP Stack with HTTP, TCP, UDP, DHCP
  • Ethernet support with Ethernet ENC28 module.
  • USB Host
  • USB Device, SPI, I2C, 2 UART, CAN
  • 9 Analog Inputs
  • 2 Analog Output
  • 4-bit SD/MMC Memory card interface
  • 6 PWM
  • OneWire interface
  • Built-in Real Time Clock (Needs 32Khz crystal)
  • RLPLite allowing users to load native code (C/Assembly) for real-time requirements.
  • FAT File System
  • Dimensions: 2.25" x 1.85" (5,71 cm x 4,7 cm)
  • Operating temperature: -20°C to 70°C
  • The Gadgeteer Fez Cerberus board is RoHS compliant /Lead-free compliant

The Gadgeteer Fez Cerberus mainboard requires .NET Gadgeteer standard red power modules.

Technical documentation of the Gadgeteer Fez Cerberus mainboard

Starter guide of the Gadgeteer Fez Cerberus mainboard
Starter guide of the Gadgeteer Fez Cerberus mainboard

Code examples and tutorials are available at http://www.tinyclr.com/support.

The Gadgeteer Fez Cerberus mainboard is ROHS compliant
