GHI Electronics | A-000000-00121
Serial Camera Module that can stream JPEG images to a Gadgeteer mainboard.
DISCONTINUED
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

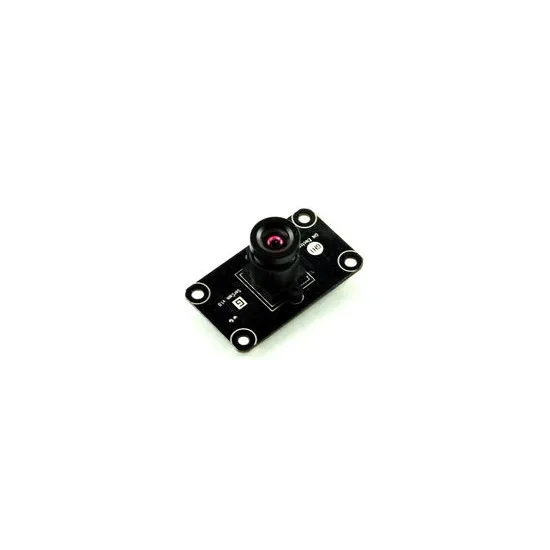

The Gadgeteer Serial Camera L2 Module

The Gadgeteer serial samera L2 module is used to stream JPEG pictures to any gadgeteer mainboard with socket type U. Depending on the memory available on the Gadgeteer mainboard, the Gadgeteer serial samera L2 module can display JPEG image on a LCD screen (if available memory on the Gadgeteer board is more than 1MB) or save the image to a SD memory card or send it over the network (the last two features are available regardless of the board memory).

The Gadgeteer Serial Camera L2 Module compared to the Gadgeteer Serial Camera L1 Module

There is no difference in image quality between this camera and the L1 camera. Both lenses allow the camera to be manually focused by turning the lens. The L2 lens makes focusing easier, and makes placing the camera inside an enclosure much easier.

Technical specifications of the Gadgeteer Serial Camera L2 Module

  • Socket: U
  • Size: 47mm x 27mm
  • Lens Diameter: 14mm
  • Max Resolution: 640x480
  • Speed: 0.5FPS @ 320x240
  • Weight: 12g
  • 3.3V Consumption : 55mA
  • 5V Consumption: 0mA
  • Includes one Gadgeteer cable

The Gadgeteer Serial Camera L2 Module is ROHS compliant.
