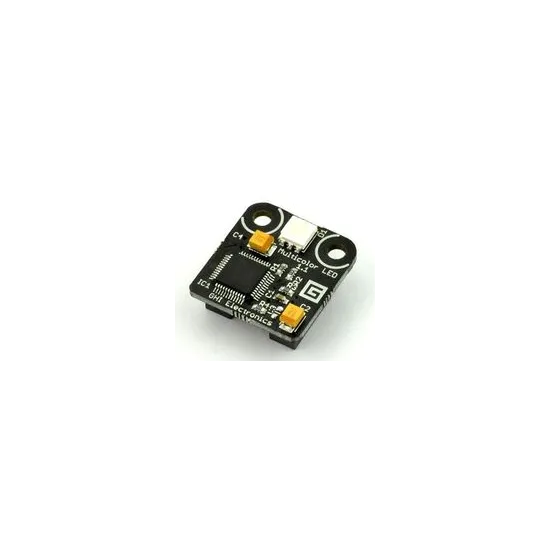

Gadgeteer Smart Multicolor LED Module

GHI Electronics | A-000000-00130
This Gadgeteer module features a smart multicolor LED. This LED is programmable and the module can be chained with other similar modules using the DaisyLink protocol.
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

The Gadgeteer Smart Multicolor LED Module

This smart Gadgeteer module features a multicolor LED (Red, Green, Blue) managed by a Cortex M0 microcontroller. This processor controls the LED : Fade, blink, change color...

This microcontroller also controls the DaisyLink protocol. This embedded protocol allows you to link one LED module to another without having to connect all the LED module to the Gadgeteer mainboard. The following image shows 7 LED modules that are connected and controlled using the DaisyLink protocol:

Gadgeteer DailyLink protocol



A good article on the DailyLink protocol is available at http://www.breakcontinue.com

Technical specifications of the Gadgeteer Smart Multicolor LED Module

The technical specifications of this Gadgeteer module are as follows:

  • Microcontroller ARM 32bit Cortex-M0 (NUVOTON M054LAN)
  • Speed: 50MHz.
  • Flash memory: 16KB
  • RAM memory: 4KBo
  • Socket: X or Y
  • Size: 21mm x 22mm
  • Weight: 2g
  • 3.3V Consumption : 20mA
  • 5V Consumption: 0mA

The Gadgeteer Smart Multicolor LED Module is provided with a Gadgeteer cable.

Gadgeteer Smart Multicolor LED Module



The Gadgeteer Smart Multicolor LED Module is ROHS compliant.

The Gadgeteer Smart Multicolor LED Module is ROHS compliant
