Gadgeteer GasSense Module

GHI Electronics | A-000000-00138
Gadgeteer module for detecting gas. The proposed detector can detect alcohol, ethanol and smoke. It is possible to change the gas sensors on this module.
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

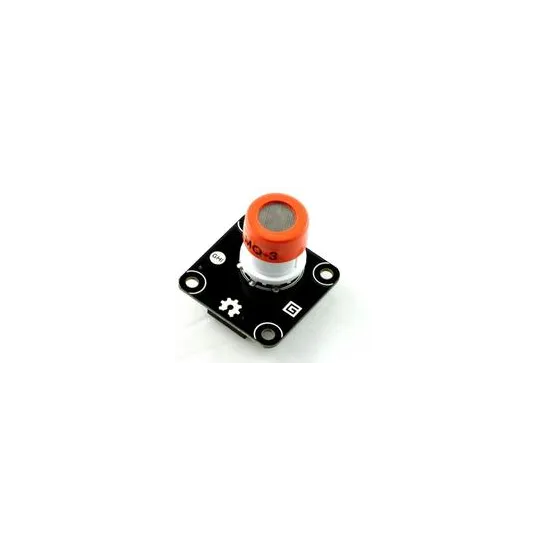

The Gadgeteer GasSense Module

GasSense is used to detect gasses, from alcohol and Carbon Monoxide to propane and other gasses. The module comes bundled with MQ3, sensitive to alcohol, ethanol and smoke. It is possible to replace MQ3 with any other sensor on the market, as long as the sensor heating element is 5V and it has the same standard pinout.

This module is designed with an on-board transistor to optionally control the sensor’s internal heat element. Through a 100K resistor divider the module returns an analog signal in accordance with the saturation of the air.

Technical specifications of the Gadgeteer GasSense Module

The technical specifications of the Gadgeteer GasSense Module are as follows:

  • Socket: A
  • Size: 32mm x 32mm
  • Weight: 9g
  • 3.3V Consumption : TBD
  • 5V Consumption: TBD

A Gadgeteer cable is included with this Gadgeteer GasSense Module.

Optional Gas detectors compatible with the Gadgeteer GasSense Module

The following detectors are compatible with the Gadgeteer GasSense Module. Only the MQ3 sensor is included with the Gadgeteer GasSense Module.

  • MQ2: Methane, Butane, LPG, smoke.
  • MQ3: Alcohol, Ethanol, smoke. (Included)
  • MQ4: Methane, CNG Gas.
  • MQ5: Natural gas, LPG.
  • MQ6: LPG, butane gas.
  • MQ135: Air quality (Benzene, Alcohol, smoke.)
  • MQ136: Hydrogen Sulfide gas.
  • MQ137: Ammonia.
  • MQ138: Benzene, Toluene, Alcohol, Acetone, Propane, Formaldehyde gas, Hydrogen gas.

This Gadgeteer module gas sensor is ROHS compliant
