Gadgeteer IO60P16 expansion Module

GHI Electronics | A-000000-00615
End of life product
Add 60 inputs /output pins to your Gadgeteer contraptions !
Quantity

Size Chart
x
Size Chart
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

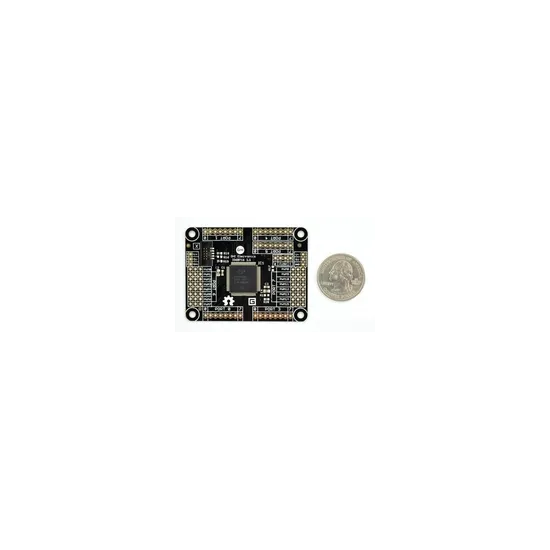

The Gadgeteer IO60P16 expansion Module

The Gadgeteer IO60P16 expansion Module allows connecting up to 60 I/O pins to your Gadgeteer contraption from one single socket (X or Y).

Based on the CY8C9560Aexpansionchip, this module offers 60 additional I/O with interrupt capability. 16 of these pins can be PWM command signals, making easy to add standard servo motors.

Specifications of the Gadgeteer IO60P16 expansion Module

The specifications of the IO60P16 expansion Module are as follows:

  • Socket X or Y
  • Size: 63mm x 48mm
  • Weight : 4g
  • 3.3V Consumption : Depend on the connected devices
  • 5V Consumption: N/A

The Gadgeteer IO60P16 Module is provided with a Gadgeteer cable.

The Gadgeteer IO60P16 Module inputs are 3.3V only. 5V logic is not supported by the module.

Outputs can source up to 10mA and sink up to 25mA each.

The Gadgeteer IO60P16 Module is ROHS compliant.

The Gadgeteer IO60P16 Module is ROHS compliant
