Sensor building kit for NXT with PCF8591 IC

MindSensors | A-000000-00351
Build your own analog device using this kit to communicate with the Lego Mindstorms NXT
DISCONTINUED ARTICLE.
Quantity
Get a quote online

Size Chart
x
Size Chart

This kit allows you to create your own analog device based on a PCF8591 chip. This kits uses I2C protocol to communicate with the Lego Mindstorms NXT.

The analog device PCF8591 is included in the kit. You'll need a soldering equipment to build your device.

Use the standard NXT cables to plug your analog device with the Lego Mindstorms NXT intelligent brick.

What's included in the kit ?

The following elements are included in the kit:

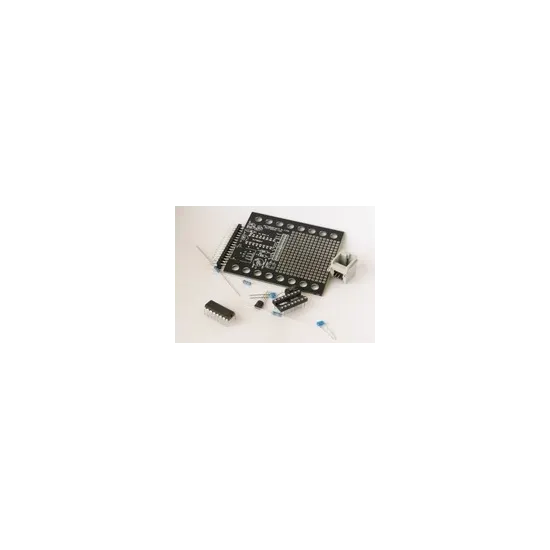

  • Specially designed PCB
  • The analog IC PCF8591
  • Capacitors and resistors
  • NXT type socket
  • 10 pin header



Programming

This kit is programmable using NXT-G. Download the NXT-G block by clicking on the following image:

NXT-G block for the PCF8591 analog building kit

Block Installation instructions

See the PCF8591-Nx V1 User Guide :

PCF8591-Nx V1 User Guide

PCF8591 Datasheet

Data sheet
