UC Battery 4xAA Module

GHI Electronics | A-000000-00443
This module is another power option for Gadgeteer users. This module has a USB connector for deploying and debugging applications and uses four AA type batteries to run a Gadgeteer system. The switch can be used to select the power source
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

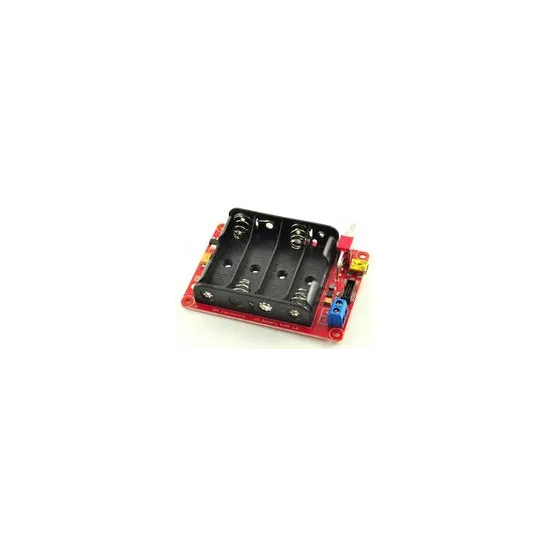

The Gadgeteer UC Battery 4xAA Module

This Gadgeteer module is another mean to power your Gadgeteer circuits. Indeed, this module allows you to power your Gadgeteer creation either using USB or 4xAA batteries. USB is used during development and debugging phase. A switch on the module allows you to switch from one type of power to another. The module allows the use of any AA batteries, from 1.5V lithium batteries to 1.2V rechargeable batteries. The module allows the use of rechargeable batteries (but does not charge them). The raw battery voltage is available on a terminal block. This is needed for robotic applications.

Technical specifications of the Gadgeteer UC Battery 4xAA Module

  • Socket: D
  • Size: 87mm x 62mm
  • Weight: 9g
  • 3.3V Supply: 800mA
  • 5V Supply: 800mA
  • Includes one Gadgeteer cable

The Gadgeteer UC Battery 4xAA Module is ROHS compliant.

The Gadgeteer UC Battery 4xAA Module is ROHS compliant.
