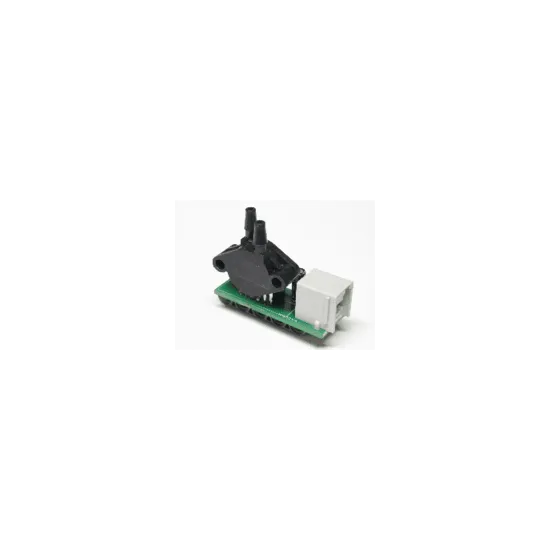

Pressure sensor dPressure 500

Dexter Industries | A-000000-00190
Pressure sensor for Lego Mindstorms NXT robots. DISCONTINUED ARTICLE.
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

This pressure sensors plugs directly into your Lego Mindstorms NXT sensor ports. This pressure sensor measures pressure changes. An adapter for Lego Pneumatic kits is included.

Technical specification of the dPressure 500 pressure sensor for Lego Mindstorms NXT

The technical specifications for the pressure sensor dPressure 500 for Lego Mindstorms NXT robots are:

  • Measure range: from vacuum to 500 kPa (70psi)
  • Smallest pressure change measurable: 0,25 kPa (0,05 Psi)
  • Average response time: 1ms

These pressure sensors can easily be incorporated into chemistry, engineering, and environmental experiments with NXT-G and Labview. To know more about the pressure sensor dPressure 500 for Lego Mindstorms NXT robots, click on the following image in order to download the PDF technical documentation of this pressure sensor:

PDF technical documentation of the pressure sensor dPressure 500 for Lego Mindstorms NXT robots

Example of use:

Programming the pressure sensor dPressure 500 for Lego Mindstorms NXT robots



Programming the pressure sensor dPressure 500 for Lego Mindstorms NXT robots using NXT-G

The pressure sensor dPressure 500 for Lego Mindstorms NXT robots is programmable using NXT-G. Click on the following image to download the NXT-G block for this pressure sensor:

NXT-G block for the pressure sensor dPressure 500

Click on the following image to download an example of an NXT-G program that uses the pressure sensor dPressure 500 for Lego Mindstorms NXT robots.

example of an NXT-G program that uses the pressure sensor dPressure 500 for Lego Mindstorms NXT robots

Programming the pressure sensor dPressure 500 for Lego Mindstorms NXT robots using RobotC

The pressure sensor dPressure 500 for Lego Mindstorms NXT robots is programmable using RobotC. Click on the following image to download the third party drivers for RobotC to program the pressure sensor dPressure 500:

third party drivers for RobotC to program the pressure sensor dPressure 500

Programming the pressure sensor dPressure 500 for Lego Mindstorms NXT robots using LabView

The pressure sensor dPressure 500 for Lego Mindstorms NXT robots is programmable using Labview. The Labview VI provides more precise pressure measurements.

VI file for Labview to program the pressure sensor dPressure 500
