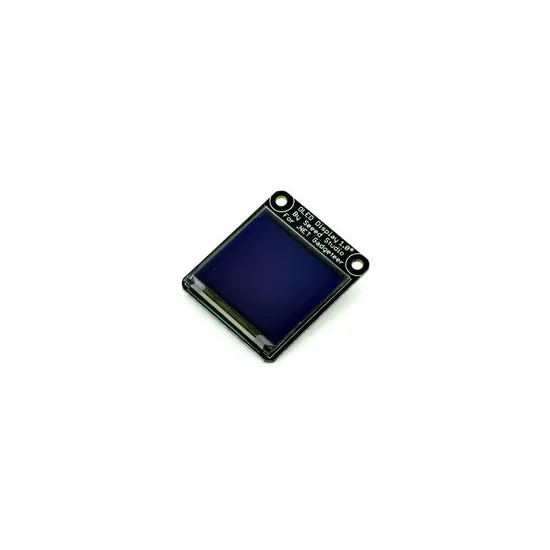

Gadgeteer OLED Display Module

GHI Electronics | A-000000-00125
This module is a 128x128 dot matrix multicolor OLED display for Gadgeteer.
Price upon request
Quantity
Get a quote online

Size Chart
x
Size Chart

The Gadgeteer OLED Display Module

This Gadgeteer module is a color screen. This is a 128x128 dot matrix display that uses the IC SSD1351 driver. The Gadgeteer OLED Display Module has a programmable color mode of 65k or 262k, frame rate and multiplexing ratio. This Gadgeteer OLED Display Module communicates with the processor using a 4-wire SPI interface

Technical specifications of the Gadgeteer OLED Display Module

The technical specifications of the Gadgeteer OLED Display Module are as follows:

  • Display Format:128(RGB)x128 Dots
  • Dimension: 33.80 x 34.00 x 1.60 mm
  • Active Area:26.855 x 26.864 mm
  • Color: 262,144 color
  • Display Mode: Passive matrix(1.50’’)
  • Operating temperature: -30℃ - +70℃
  • Socket: S
  • Size: 37mm x 43mm
  • Weight: 10g
  • 3.3V Consumption : >1mA
  • 5V Consumption: 5mA

A Gadgeteer cable is provided with the Gadgeteer OLED Display Module

The Gadgeteer OLED Display Module is ROHS compliant.

The Gadgeteer OLED Display Module is ROHS compliant.
