Gadgeteer CAN DW Module

GHI Electronics | A-000000-00478
Gadgeteer module that allows you to connect your .NET Gadgeteer circuits to a CAN bus data.
DISCONTINUED.
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

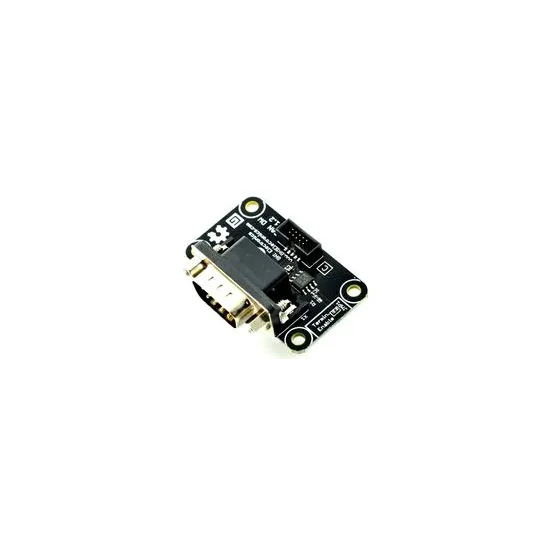

The Gadgeteer CAN DW Module

The Gadgeteer CAN DW Module allows to connect Gadgeteer circuits using the CAN bus (Controller area network).

CAN is a multi-master broadcast serial bus standard for connecting electronic control units. The pinout on the CAN bus is normalized and uses a standard DB-9 connector. It is this type of connector that is found on the CAN DW Gadgeteer module.

The CAN bus can be used to connect Gadgeteer circuits. The CAN bus can operate in a decentralized mode with minimal features. The automotive sector is the source of the CAN data bus, which avoids a point to point wiring solution that is too complex to implement and maintain.

This CAN module exposes the CAN TX and CAN RX digital lines that can be a High Speed Dual Wire, Single Wire or even Low Speed Fault Tolerant.

Technical specifications of the Gadgeteer CAN DW Module

The technical specifications of the Gadgeteer CAN DW Module are as follows:

  • Socket: C
  • Size: 47mm x 39mm
  • Weight: 9g
  • 3.3V Consumption : 0mA
  • 5V Consumption: 18mA

A Gadgeteer cable is provided with this Gadgeteer CAN DW Module.

The Gadgeteer CAN DW Module is ROHS compliant.

The Gadgeteer CAN DW Module is ROHS compliant.
