5V DC to DC Step Up converter

SparkFun | A-000000-00801
The 5V DC to DC Step Up Converter is an easy-to-use and perfect PCB for those applications that need to be small. Discontinued article.
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

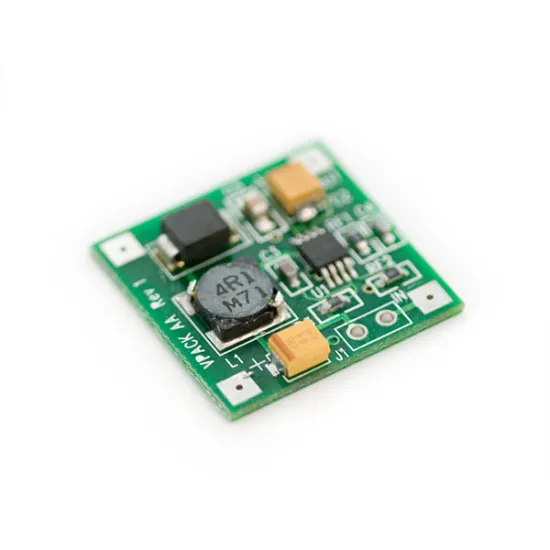

5V DC to DC Step Up Converter presentation

The 5V DC to DC Step Up Converter is easy-to-use Bodhilabs power supply. This PCB uses a power supply from 1,1 V to 4,5 V et generates 5V using a DC to DC step up circuit. An empty footprint for a manual or wire jumper is included in the package to connect and disconnect power to the circuit.



5V DC to DC Step Up Converter outline

5V DC to DC Step Up Converter outline



5V DC to DC Step Up Converter spécifications

  • Voltage regulation: +5V +/-3%
  • Typical current : 300mA or less
  • Typical ripple: 150mV peak-peak (*) @ 135kHz



5V DC to DC Step Up Converter documentation

The following document is the 5V DC to DC Step Up Converter user guide:



5V DC to DC Step Up Converter user guide
