Motor Driver Shield Monster Moto

SparkFun | A-000000-00810
Here is an improved version of the motor driver shield Ardumoto. Combined with an Arduino board, the Monster Moto becomes a reliable and powerful control platform for autonomous mobile robots.
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

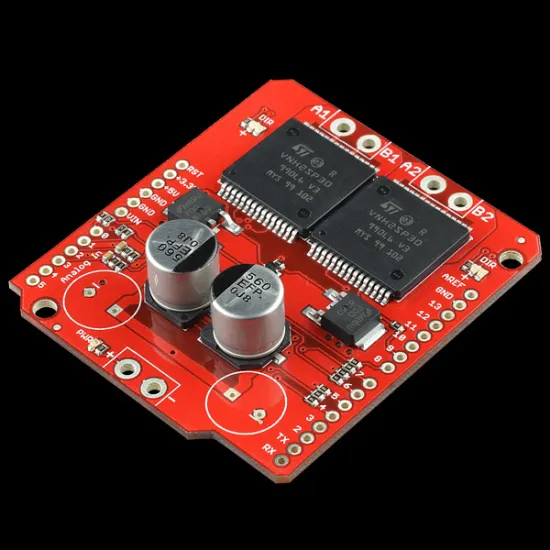

Presentation of the Motor Driver Shield Monster Moto

The L298 H-bridge is no longer available in the Motor Driver Shield Monster Moto since it has been replaced for a pair of VNH2SP30 full-bridge motor drivers. The Motor Driver Shield Monster Moto has been enhanced to drive a pair of high-current motors while the VIN and motor have been adjusted for connecting larger wires more easily.

NOTE: If you use this shield for high-demand applications it is recommended to use a heat-sink or a fan and to solder the wires directly to the board rather than connecting them with a screw terminal.

The Motor Driver Shield Monster Moto does not come with a basic Soldering Kit, don't get stuck and remember to have a basic Soldering Kit to quickly get started.

You can see below the dimensions for the Motor Driver Shield Monster Moto

Dimensions of the Motor Driver Shield Monster Moto



Technical specifications of the Motor Driver Shield Monster Moto

The main features are the following:

  • Maximum Voltage: 16V
  • Maximum current rating: 30 A
  • Practical Continuous Current: 14A
  • Current sensing available to Arduino analog pin
  • MOSFET on-resistance: 19 mOhm (par patte)
  • Maximum PWM frequency: 20 kHz
  • Thermal Shutdown
  • Undervoltage and Overvoltage shutdown



Technical resources for the Motor Driver Shield Monster Moto

The following documents will help you getting familiar with the Motor Driver Shield Monster Moto

Motor Driver Shield Monster Moto VNH2SP30 full-bridge motor drivers datasheet in PDF version

Motor Driver Shield Monster Moto VNH2SP30 full-bridge motor drivers datasheet in PDF version

Motor Driver Shield Monster Moto schematics in PDF version

Motor Driver Shield Monster Moto schematics in PDF version

Motor Driver Shield Monster Moto Eagle files in ZIP

Motor Driver Shield Monster Moto Eagle files in ZIP file

Motor Driver Shield Monster Moto Example code
