Arduino Robot (EU Version)

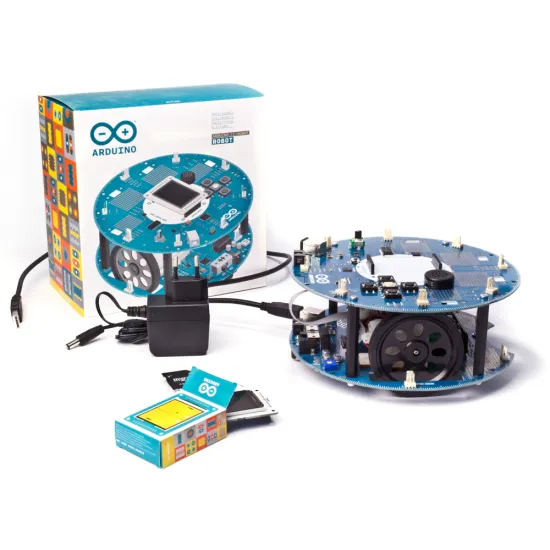

Arduino Robot with EU/US/UK/AU power plugs

Arduino | A-000000-01208
Discover the first official Arduino mobile robot. This small mobile robot from Arduino has two Arduino boards, one for motors control and the other for high-level control logic.
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

Arduino Mobile robot

This programmable mobile robot is the first official robot from Arduino. Using two Arduino boards each one having its own ATmega32u4 microcontroller, this mobile robot is a good opportunity to learn or to improve your knowledge of Arduino programming.

The first Arduino board is the Motor Board that control motors. The second board is the Control Board which receives information from the sensors and take high level decisions. Such an architecture using two boards is common in robotics. One board manages all the computing related to motor control (Management of the PWM signal). The other board has then more computing power to handle trajectory planning, sensor integration... These boards are Arduino board that are programmable using Arduino IDE.

The programming of the Arduino robot is similar of the programming of the Arduino Leonardo board. Indeed, each processor has an on-board USB communication, thus limiting the necessity of a second processor. Your Arduino robot appears on your PC as a virtual COM port.

Technical specifications of the Arduino robot

The Arduino robot has the following technical specifications:

  • An LCD screen
  • A compass
  • A control pad (5 buttons on the Arduino robot)
  • A speaker
  • A knob
  • 5 distance infrared sensors below the robot (for line following on the ground)
  • A Micro-SD card

The diameter of the robot is 18.5 cm and its height is 9cm.

In addition to the Arduino robot, the box contains:

  • A USB cable
  • A SD-Card adapter
  • 4 rechargeable batteries
  • A charger

The control board of the Arduino robot

As explained above, this board if the mainboard of the Arduino robot, that runs the high level program that takes movement decisions of the robot and transmits the orders to the motor board. This board is the brain of the Arduino robot. Its technical specifications are as follows:

  • Microcontroller ATmega32u4
  • Operating Voltage 5V
  • Input Voltage 5V through flat cable
  • Digital I/O Pins 5
  • PWM Channels 6
  • Analog Input Channels 4 (of the Digital I/O pins)
  • Analog Input Channels (multiplexed) 8
  • DC Current per I/O Pin 40 mA
  • Flash Memory 32 KB (ATmega32u4) of which 4 KB used by bootloader
  • SRAM 2.5 KB (ATmega32u4)
  • EEPROM (internal) 1 KB (ATmega32u4)
  • EEPROM (external) 512 Kbit (I2C)
  • Clock Speed 16 MHz
  • Keypad 5 keys
  • Knob potentiometer attached to analog pin
  • Full color LCD over SPI communication
  • SD card reader for FAT16 formatted cards
  • Speaker 8 Ohm
  • Digital Compass provides deviation from the geographical north in degrees
  • I2C soldering ports 3
  • Prototyping areas 4

Control board of the Arduino robot

The motors control board of the Arduino robot

This control board manages the motors of the Arduino robot. It receives commands from the main control board. Its technical specifications are as follows:

  • Microcontroller ATmega32u4
  • Operating Voltage 5V
  • Input Voltage 9V to battery charger
  • AA battery slot 4 alkaline or NiMh rechargeable batteries
  • Digital I/O Pins 4
  • PWM Channels 1
  • Analog Input Channels 4 (same as the Digital I/O pins)
  • DC Current per I/O Pin 40 mA
  • DC-DC converter generates 5V to power up the whole robot
  • Flash Memory 32 KB (ATmega32u4) of which 4 KB used by bootloader
  • SRAM 2.5 KB (ATmega32u4)
  • EEPROM 1 KB (ATmega32u4)
  • Clock Speed 16 MHz
  • Trimmer for movement calibration
  • IR line following sensors 5
  • I2C soldering ports 1
  • Prototyping areas 2

Motor control board of the Arduino robot

Arduino robot view from below

More technical informations of the Arduino robot are available at http://arduino.cc/en/Main/Robot
