MP3 Player Shield

MP3 Player Shield

SparkFun | A-000000-00812
The new version of the MP3 Player Shield lets you efficiently convert your Arduino into an MP3 player, also capable of storing files from an SD card. DISCONTINUED ARTICLE.
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

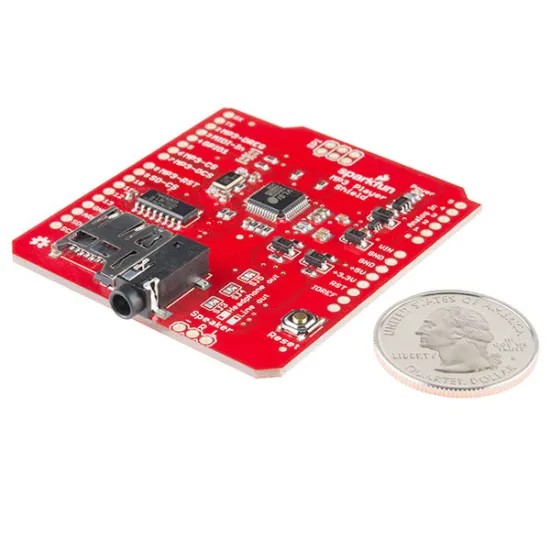

MP3 Player Shield: Designed for Arduinos

It’s now possible to easily convert your Arduino board into an MP3 player capable of not only decoding Ogg Vorbis/MP3/AAC/WMA/MIDI audio, but also encoding in IMA ADPCM and Ogg Vorbis thanks to the MP3 Player Shield. This shield decodes MP3 streams and distributes them to a 3.5 mm stereo headset socket and a 2-pin header on a 0.25 cm pitch (not fitted). This stream is conveyed via an I²C link – a data bus originally developed by Philips to facilitate communications between microprocessors and circuits.

MP3 Player Shield: New features

The MP3 Player Shield offers some notable improvements over the previous version: not only can you now decode numerous audio files, but you also have the possibility to store the files from an SD card thanks to a dedicated slot. Extracting and playing these files is now centralised on a single shield! So by using your Arduino board and this shield you can create an MP3 player on which you can store your best playlists saved on a removable memory card.

Technical specifications of the MP3 Player Shield

  • Supplied with all components
  • Shield supplied already soldered
  • VS1053B MP3 audio decoder
  • Ogg Vorbis/MP3/AAC/WMA/MIDI decoding
  • IMA ADPCM and Ogg Vorbis encoding (downloadable)
  • RoHS compliant
  • Built-in microSD slot

Note: The MP3 Player Shield is supplied without the headers fitted, which requires a number of 6- and 8-pin headers.

Resources for the MP3 Player Shield:

The resources below contain documents that will help you get started more rapidly with the MP3 Player Shield:

MP3 and MIDI Codec datasheet

MP3 and MIDI Codec datasheet

Diagrams of the MP3 Player Shield

Diagrams of the MP3 Player Shield

MP3 Player Shield EAGLE files

MP3 Player Shield EAGLE files

MP3 Player Shield Line Out Information

MP3 Player Shield Line Out Information

MP3 Player Shield decoding sketch examples

MP3 Player Shield decoding sketch examples

MP3 Player Shield MP3 file samples

MP3 Player Shield MP3 file samples

GitHub for the MP3 Player Shield

GitHub for the MP3 Player Shield

MP3 Player Shield example code

MP3 Player Shield example control code
