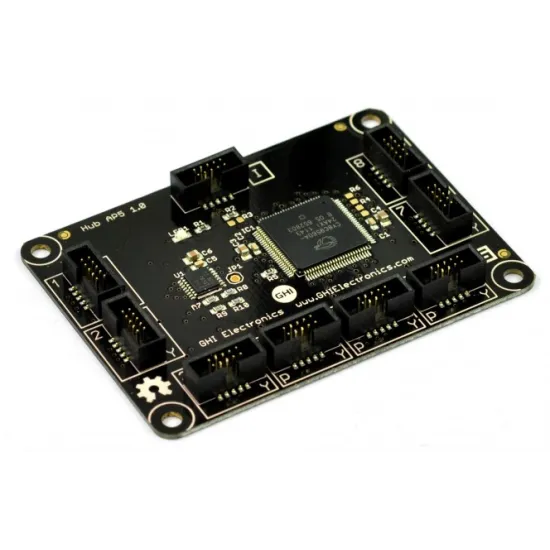

Gadgeteer Hub AP5 Module

GHI Electronics | A-000000-01027
The Gadgeteer Hub AP5 Module is an expansion module for your motherboard that will give you 8 extra sockets.
End of life product
Quantity

Size Chart
x
Size Chart

The Gadgeteer HUBAP-GM-471 Module: Give your motherboard some space

The GHI Electronics Gadgeteer HUBAP-GM-471 Module has an I socket (I²C bus) dedicated to communication with your motherboard. The other 8 sockets can therefore be used to connect other modules.

Gadgeteer Hub AP5 Module: A variety of sockets

With the Hub AP5 Module, you therefore have 8 sockets, including 1 Y socket, 2 Y/A sockets, and 5 Y/P sockets (PWM). All 8 are GPIO type sockets.

Technical specifications of the Gadgeteer Hub AP5 Module

  • 1 x I socket (I²C)
  • 8 x Y sockets (GPIO), including:
    • 1 x Y socket
    • 2 x Y/A sockets
    • 5 x Y/P sockets (PWM)
  • 1 x Gadgeteer cable
  • Dimensions : 72x52,4x7mm
  • Weight : 14g
  • Consumption @ 3.3 V: 7 mA
  • Consumption @ 5 V: 0 mA

Resources for the Gadgeteer Hub AP5 Module

The following resources contain links and documents that will help you get started more rapidly.

Diagram of the Gadgeteer Hub AP5 Module

Diagram of the Gadgeteer Hub AP5 Module

The Gadgeteer Hub AP5 Module developers’ site
