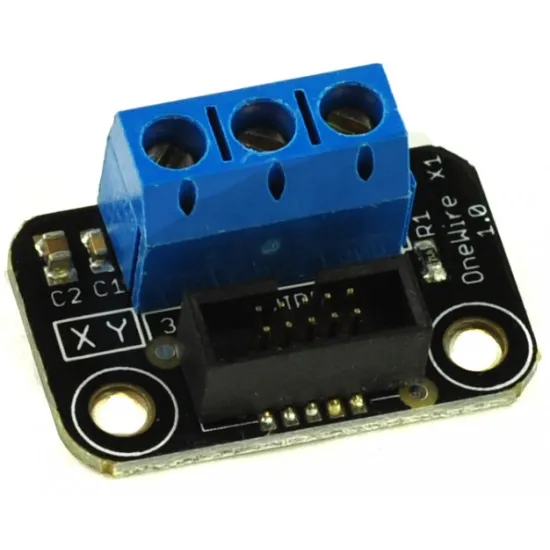

Gadgeteer OneWire X1 Module

GHI Electronics | A-000000-01031
The Gadgeteer OneWire X1 Module allows you to connect one or more OneWire devices at the same time.

DISCONTINUED PRODUCT

End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

The 1WIRE-GM-452 X1 Module: OneWire technology for your Gadgeteer projects

The Gadgeteer 1WIRE-GM-452 OneWire X1 Module allows you to connect different devices using the OneWire technology. It is in fact fitted with a pull-up resistor, essential when using this type of device. The 1WIRE-GM-452 module by GHI Electronics is equipped with an X or Y socket and is supplied with its own Gadgeteer cable.

The GHI Electronics OneWire X1 Module for your meteorological sensor projects

OneWire devices are used mostly to capture meteorological data such as temperature, as well as the temperature under the water and even barometric pressure. So your Gadgeteer OneWire X1 Module can be used to centralise these various sensors.

Technical specifications of the Gadgeteer 1WIRE-GM-452 Module

  • X or Y socket
  • Consumption @ 3.3 V: depends on the consumption of the OneWire device connected
  • Consumption @ 5 V: 0 mA
  • Comes with a Gadgeteer cable
  • Dimensions: 27 x 17 x 14.1 mm
  • Weight: 28.3 g

Resources for the Gadgeteer OneWire X1 Module

The following resources contain links and documents that will help you get started more rapidly.

Diagram of the Gadgeteer OneWire X1 Module

Diagram of the Gadgeteer OneWire X1 Module

The Gadgeteer OneWire X1 Module developers’ site
