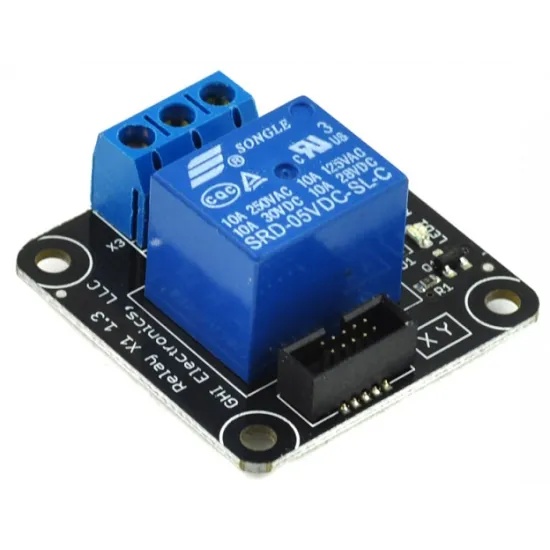

Gadgeteer Relay X1 Module

GHI Electronics | A-000000-01035
A Gadgeteer module fitted with a single relay for controlling voltages of up to 250 Vac or 30 Vdc, drivable from your Gadgeteer board.
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

The RLYX1-GM-464 Relay Module by GHI Electronics: Take control!

This Gadgeteer RLYX1-GM-464 Relay Module operates as a switch. It is fitted with a single relay capable of controlling voltages of up to between 125 and 250 Vac or 28 and 30 Vdc. It is fitted with an X/Y socket and comes with its own Gadgeteer cable.

Operating precautions for the Gadgeteer Relay X1 Module by GHI Electronics

Great care must be taken when working with electrical circuits involving dangerously high voltages. To avoid accidents, in case of doubt, please seek the advice of an electrician.

Technical specifications of the RLYX1-GM-464 Relay Module

  • Socket: X (3 GPIO) or Y (7 GPIO)
  • Consumption @ 3.3 V: 0 mA
  • Consumption @ 5 V: 20 mA
  • Gadgeteer cable supplied
  • Dimensions : 37 x 37 x 19,18 mm
  • Weight: 57 g
  • Complies with the RoHS standard

Resources for the Gadgeteer Relay X1 Module

The following resources contain links and documents that will help you get started more rapidly.

Diagram of the Gadgeteer Relay X1 Module

Diagram of the Gadgeteer Relay X1 Module

Gadgeteer Relay X1 Module datasheet

Gadgeteer Relay X1 Module datasheet

The Gadgeteer Relay X1 Module developers’ site
