Salae Logic-to-1x9 Header for Salae Analyzer Logic or Salae Analyzer Logic 16
Salae Logic-to-1x9 Header for Salae Analyzer Logic or Salae Analyzer Logic 16
Salae Logic-to-1x9 Header for Salae Analyzer Logic or Salae Analyzer Logic 16

Salae Logic-to-1x9 Header for Salae Analyzer Logic or Salae Analyzer Logic 16

Saleae Logic Analyzer | A-000000-01194

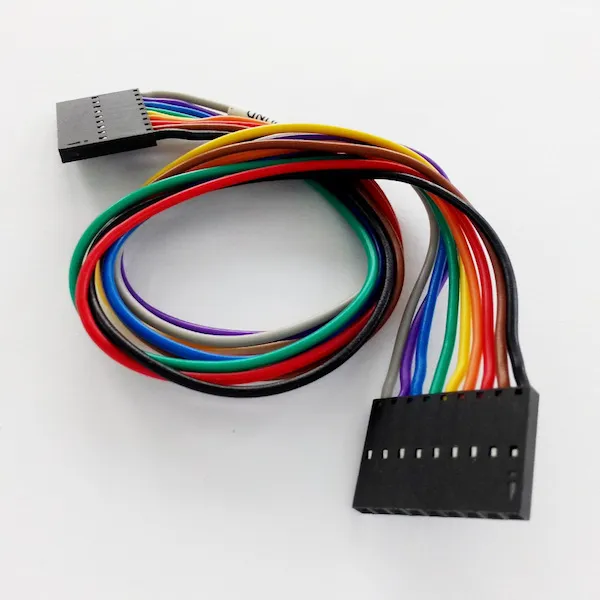

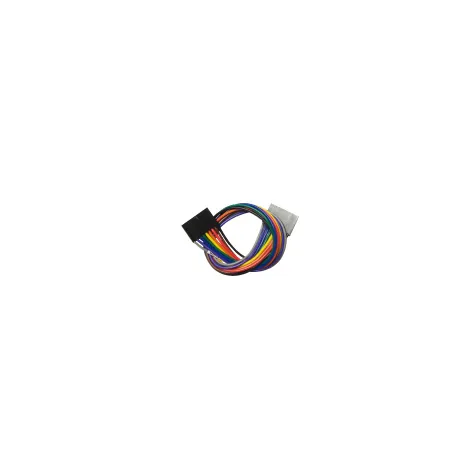

The Salae Logic-to-1x9 Header is a cable harness that will allow you to build Logic support right into your next PCB! It ic compatible with the Salae Logic and Salae Logic16 analyzers.
€10.50
Tax included

Including €0.01 for ecotax

Quantity 5 Available
Get a quote online

Size Chart
x
Size Chart
Wishlist

More about the Salae Logic-to-1x9 Header

With this cable harness for Saleae Logic or Saleae Logic 16 , you will be able to connect your Printed Circuit Board to a Logic Analyzer via an IDE output. The Salae Logic-to-1x9 Header features ultra-flexible wires for an optimal connection.

Design your own Logic support with this Logic-to-1x9 Header

ll you have to do, is designing a 9-pin IDE header and use it with this cable to connect your PCB to a Salae Analyzer Logic or Salae Analyzer Logic 16. The IDE connectors needs to be 2.54mm apart (2.54mm/.100in pitch).

Technical specifications for the Salae Logic-to-1x9 Header

  • 1x9 ultra-flexible wires
  • Only compatible with the Salae Analyzer Logic and the Salae Analyzer Logic 16
