Module LEDs multicolores Gadgeteer

Gadgeteer Multicolour LED Module

GHI Electronics | A-000000-01353

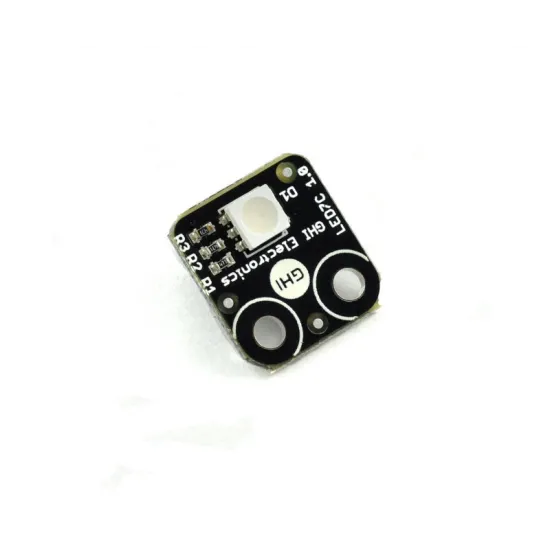

This Gadgeteer Multicolour LED Module is fitted with 3 LEDs (red, green and blue) capable of generating 7 different light colours.
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

Gadgeteer Multicolour LED 7C Module: 3 = 7!

The 7C LED Module has three red, green and blue LEDs connected to an on/off controller to allow you to vary the colour of the light.

In all, seven different colours can be generated, depending on the status of each LED (lit or unlit). The Gadgeteer 7C LED Module connects to the X or Y socket of your .NET Gadgeteer board.

Uses for the 7-colour Gadgeteer Multicolour LED Module

You can use the 7-colour Gadgeteer LED Module in many different ways in your electronic projects, from the simplest to the most sophisticated, for example as status LEDs, a coloured backlight for a screen or keyboard or for creating illuminated baby’s toys or multicolour DIY nightlights!

Technical specifications of the 7-colour Gadgeteer Multicolour LED Module

  • Required socket type: X or Y
  • Working supply voltage: 3.3 V
  • 5 V tolerant
  • Consumption: 35–60 mA @ 3.3 V; 0 mA @ 5 V
  • Dimensions: 18 x 17 x 8.75 mm
  • Weight: 2 g
  • Meets RoHS environmental standards



7-colour Gadgeteer Multicolour LED Module schematic

Resources for the 7-colour Gadgeteer Multicolour LED Module

Below you’ll find all the additional information you need on the LED7C-GM-422 Gadgeteer LED Module!

7-colour Gadgeteer Multicolour LED Module - Technical schematic

7-colour Gadgeteer Multicolour LED Module - Technical schematic

7-colour Gadgeteer Multicolour LED Module - 3D PDF

7-colour Gadgeteer Multicolour LED Module - 3D PDF

7-colour Gadgeteer Multicolour LED Module - 3D models

7-colour Gadgeteer Multicolour LED Module - 3D models
