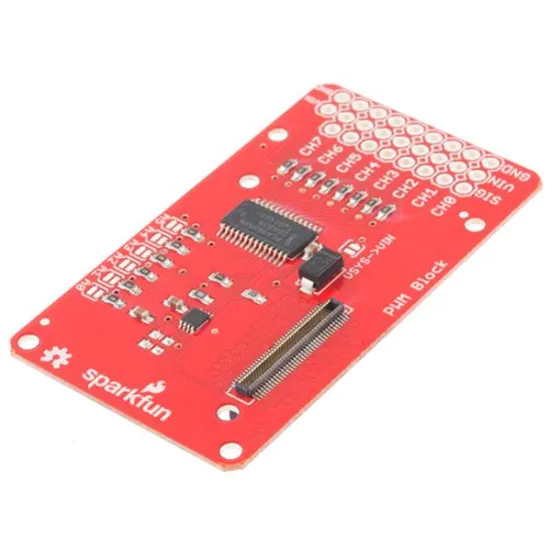

SparkFun Block for Intel® Edison – PWM

PWM Block for Intel® Edison

SparkFun | A-000000-01657
The PWM SparkFun Block for Intel® Edison is an expansion board designed by SparkFun allowing you to add 8 PWM channels to your computing platform for different uses, and in particular to control servos!
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

SparkFun Block for Intel® Edison: 8 PWM channels, an added bonus!

The Intel® Edison board has 4 pins (included in its 70-pin I/O connector) capable of supporting a PWM signal. With the SparkFun Block for Intel® Edison, you’ll be able to add 8 new 12-bit PWM channels simply by fitting your stackable block onto the Intel® Edison board.

The PWM SparkFun Block for Intel® Edison communicates with your board via the I2C bus, offering it 8 new PWM outputs for use in standard applications functioning with this type of signal. This block can also be used to control LEDs of up to 25 mA.

More specifically, the SparkFun PWM Block allows your Intel® Edison board to control 8 standard servos. This is because the PWM block is equipped with a PCA9685 circuit and a clock that can be operated at 50 Hz. It can also provide an independent power supply for all servos requiring a level of power higher than that provided by the Intel® Edison board. The PWM block includes 8 connections compatible with all standard hobby servo pinouts.

You can stack up to 32 blocks on top of each other using 6 bridges, which will need to be soldered onto each block.

Put your Intel® Edison to its most effective use with the SparkFun expansion boards

The Intel® Edison board may be extremely compact, but it offers endless possibilities. To put its minimalist design to effective use while making the most of its many features, SparkFun has developed a new range of stackable boards, called blocks, each with specific characteristics for developing your own applications and prototypes in the field of the Internet of Things.

This SparkFun PWM Block for Intel® Edison allows you to take easy control of 8 servos (or more!), and hence develop your own connected robotic platform. In short, it’s a true IoT robot in its own right that can be controlled by your Intel® Edison board directly from your Smartphone or computer!

Technical specifications of the SparkFun PWM Block

  • Communication interface: I2C
  • Expansion board with PCA9685 circuit
  • Independent 50 Hz clock
  • 8 x 12-bit PWM output channels



Resources for the SparkFun Block for Intel® Edison – PWM

We’ve put together a full set of documents to help you get to grips with the SparkFun DEV-13042 Block:

Schematic for the SparkFun Block for Intel® Edison – PWM

Schematic for the SparkFun Block for Intel® Edison – PWM

EAGLE files for the SparkFun Block for Intel® Edison – PWM

EAGLE files for the SparkFun Block for Intel® Edison – PWM

GitHub repository for the SparkFun Block for Intel® Edison – PWM

GitHub repository for the SparkFun Block for Intel® Edison – PWM
