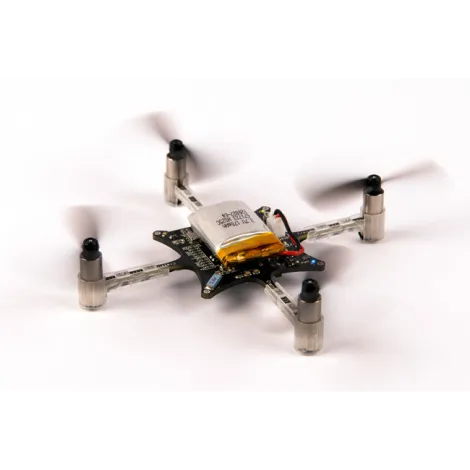

Crazyflie Nano Quadcopter Kit 10-DOF with Crazyradio (BC-CFK-02-B)
Crazyflie Nano Quadcopter Kit: modelling in all its beauty

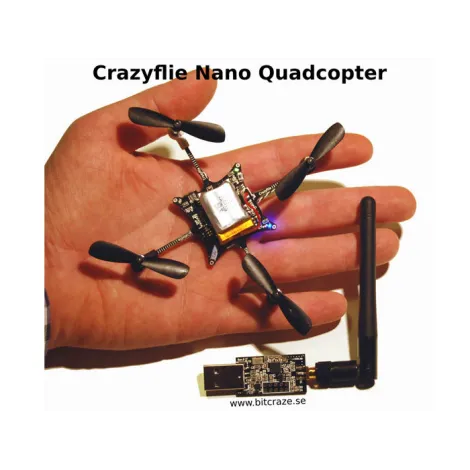

From assembly to flying, the Crazyflie Nano Quadcopter Kit 10-DOF (with 10 degrees of freedom) will keep you busy for a good long while! This minuscule quadcopter (9 cm wingspan and weighing just 19 g!) is delivered unassembled.
Be warned, you’re going to need your soldering iron (and a magnifying glass) to build your quadcopter!
We’ve provided a link to the full instructions to help you assemble your Nano Quadcopter in our "Resources" section, which you’ll need to handle with care!

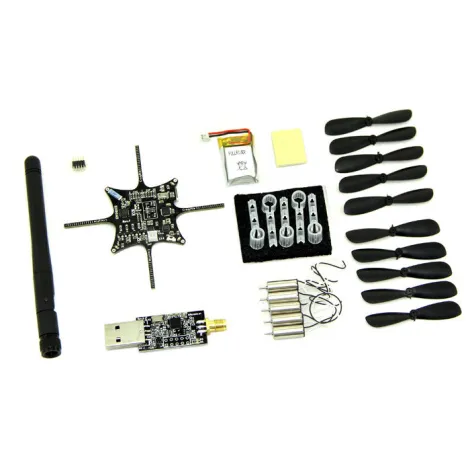

The Crazyflie mini-drone assembly kit includes:

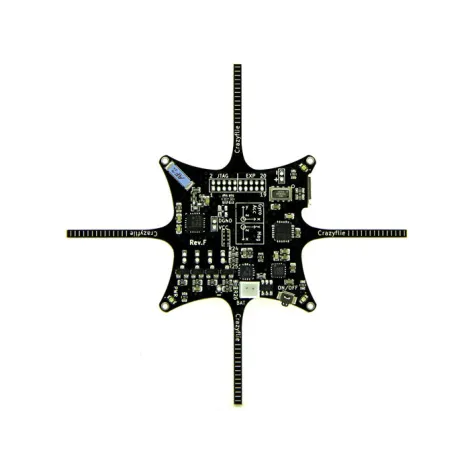

- 1 Crazyflie control board

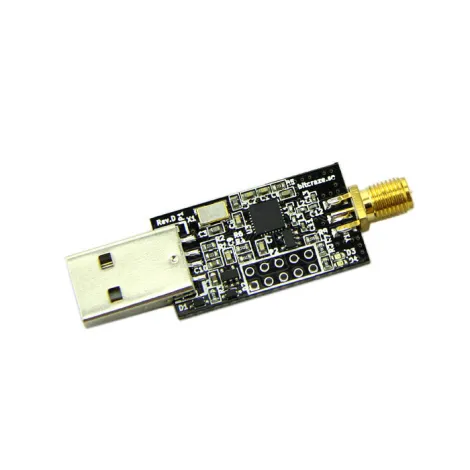

- 1 x 2.4 GHz Crazyradio, with 125 channels
- 1 x 2 dBi duck antenna
- 5 motor mounts
- 5 coreless DC motors
- 5 CW propellers
- 1 LiPo battery
- 1 x 1.27 mm 2x5-pin header
Create your mini-quadcopter and prepare for take-off!
You can also add an additional connector to your drone including I2C/UART, SPI/ADC and JTAG pins to provide it with new features by adding other compatible modules.
But even without this, your Crazyflie drone will have everything it needs to take to the air without mishap. It’s even equipped with ultra-powerful navigation equipment:
- 3-axis MEM gyroscopes
- 3-axis accelerometer
- 3-axis magnetometer
In short, everything you need to accurately determine the position, speed, altitude and direction of your mini quadcopter!
And, of course, with your Crazyflie Quadcopter you’ll benefit from an ultra-high-performance radio guidance system (the famous Crazyradio) allowing you to control your device from up to 80 metres away.
Technical specifications of the Crazyflie drone kit
- Dimensions: 90 mm wingspan (motor to motor)
- Weight: 19 g
- Flying time: approx. 7 min. with a 170 mAh LiPo battery
- Standard micro USB connector for charging
- Crazyradio range (with Crazyradio USB dongle): 80 m
- Radio bootloader for wireless firmware update
- 32-bit MCU: STM32F103CB @ 72 MHz (128kb flash, 20kb RAM)
- 3-axis high-performance microelectromechanical system (MEMS) gyroscopes with 3-axis accelerometer
- HMC5883L 3-axis magnetometer
- MS5611-01BA03 high-precision altimeter
- 4-layer low noise PCB with separate voltage regulators for digital and analogue supply
- 2x10-pin expansion header measuring 1.27 mm in height (I2C/UART, SPI/ADC, ARM Cortex 10-pin JTAG) (not included in this kit)
Resources for the Crazyflie Nano Quadcopter Kit 10-DOF with Crazyradio
Découvrez toutes les ressources nécessaires pour l’assemblage, le développement et le pilotage de votre mini quadricoptère Crazyflie :
