GHI Electronics | A-000000-01623

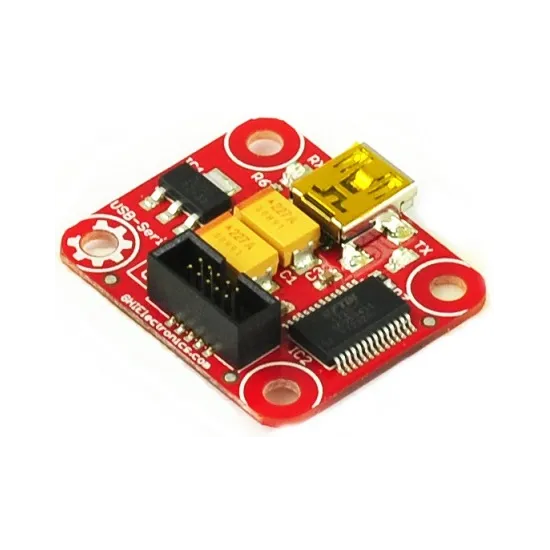

The USB-Serial SP Module is a 2-in-1 module that not only converts your UART serial sockets into a single virtual USB connection, but also allows you to power your electronics project.
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

USB-Serial SP Module: communicate directly with your computer

With the USB-Serial SP Module, it’s now possible, by simply connecting it to your Gadgeteer board, to communicate quickly and easily with your computer via a USB connection (Gadgeteer cable included).

The USBSR-GM-437 module effectively allows you to convert your microcontroller’s UART sockets into a single USB-serial connection.

Like the Gadgeteer Client SP, Client EDP and Client DP modules, the USB-Serial SP Module can also be used to power your board through your computer.

Uses for the Gadgeteer USB-Serial SP Module

The type of connection established by the USB-Serial SP Module allows you to:

  • transmit data from your Gadgeteer board to your computer
  • download data and applications from your computer to your board
  • easily debug these applications
  • power your board via the module’s USB port



Technical specifications of the Gadgeteer USB-Serial SP Module

  • Required socket type: U or K
  • 5V compatible
  • Consumption: 800 mA @ 3.3 V; TBD @ 5 V
  • Dimensions: 32 x 27 x 7.2 mm
  • Weight: 10 g



Resources for the Gadgeteer USB-Serial SP Module

Here you will find lots of useful links to help you operate and use your USBSR-GM-437 module.

Developers’ guide

Technical schematic of the Gadgeteer USB-Serial SP Module

3D models of the Gadgeteer USB-Serial SP Module

Dimensions of the Gadgeteer USB-Serial SP Module
