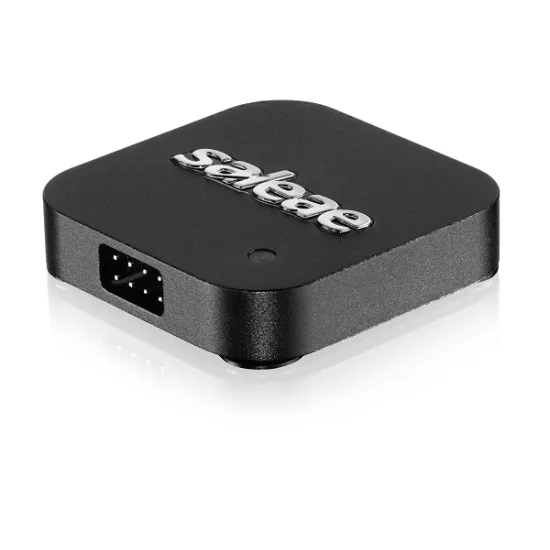

Saleae Logic Analyzer | A-000000-01837
Cheap and very powerful, this new version of the 4-channel USB logic analyser has a 3MHz sampling rate. Your digital electronic circuits won't have secrets for you anymore ! DISCONTINUED
End of life product
Quantity
Get a quote online

Size Chart
x
Size Chart

Say Goodbye Frustration and hello to efficiency ! The communication between your digital circuits becomes crystal clear. The Saleae USB logic analyzer is a tool that will allow roboticists and electronic engineers to save a lot of time and to solve very common bugs quickly and easily.

Saleae USB 4-channel Logic Analyser at a glance

This tool offers the following features:

  • Sampling: 3MHz
  • Number of channels: 4 (3 digital + 1 mixed signals analog/digital)
  • Number of samples: +10 Billions
  • Input voltage: from 2.5V to 5.5V. Supports usual standard CMOS thresholds (0.8V for logic low, 2V for logic high)
  • Everything is included: The Saleae 4 USB logic analyzer, 4 channel wire harness, 8 micro-gripper hooks, a Saleae zipped neoprene case and a USB 2.0 cable
  • 3-years warranty



3MHz to see your communications in another way

The 3MHz sampling rate on each channel allows capturing most of the common real world applications and main communication protocols (I2C, SPI, One-Wire, serial, UART,...).

4 channels Saleae logic analyser

The Salae Logic has 4 channels that can be used simultaneously. serial or parallel links, most protocols can be captured.

10 billions samples !

No more small data buffers. the Salae USB logic analyzer can store up to 10 billion samples.

Saleae 4-Channel 3MHz USB Logic Analyzer content

Reliable and rock solid

The analyzer enclosure is made out of anodized aluminium. Its inputs are protected against overvoltage via current-limiting resistors and a resettable fuse protect the USB host.

Saleae 4-Channel 3MHz USB Logic Analyzer screenshot

Everything is included with the 4 channels Saleae logic analyser

The logic analyzer comes with everything required to work with it: An ultra flexible 4 channel wire harness, 8 high-quality micro-hook probes, a USB 2.0 cable and a nice carrying case. Download and install the software and you can start debugging !

Warranty and support of the 4 channels Saleae logic analyser

All Saleae USB logic analyzers come with a 3-years manufacturer warranty. If your Logic stops working for any reason, the manufacturer will ship you a replacement unit at no cost.

Associated software with the 4 channels Saleae logic analyser

The software for Logic 4, Logic 8 and Logic 16 analysers is available for download. This software is very easy to use and is available for Windows, Mac OS and Linux in their 32-bit and 64-bit versions.
