  3. Gadgeteer S-Plus Module
Gadgeteer S-Plus Module
Gadgeteer S-Plus Module
Gadgeteer S-Plus Module
Gadgeteer S-Plus Module

Gadgeteer S-Plus Module

GHI Electronics | A-000000-01622
Need more S type sockets (SPI) on your Gadgeteer board? This is exactly what the Gadgeteer S-Plus Module is for!
End of life product
Quantity

Size Chart
x
Size Chart

Gadgeteer S-Plus Module: multiply your number of S sockets

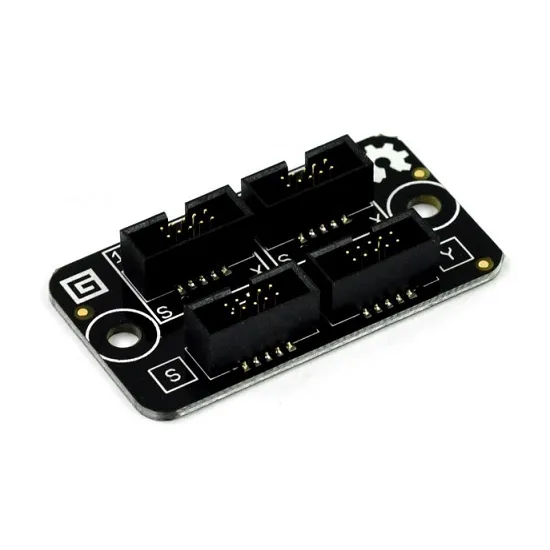

The principle behind the Gadgeteer S-Plus Module is quite simple: it allows you to convert an S socket and a Y socket into 2 S type sockets (Serial Peripheral Interface). As usual, no welding is necessary, you benefit from the plug and play hardware designed by GHI Electronics!

And if you really need to increase your number of S sockets, it’s also possible to connect several SPLUS-GM-502 modules in a chain!

Why use the Gadgeteer S-Plus Module to create more S sockets?

Some Gadgeteer modules can be connected only to an S type socket on your Gadgeteer board. These are generally modules capable of communicating via an SPI interface, like WiFi modules for example. The SPLUS-GM-502 module can also be used to compensate for a lack of sockets on certain boards, such as the FEZ Cerbuino Bee, which has only one SPI compatible socket.

Technical specifications of the Gadgeteer S-Plus Module

  • Required socket type: S and Y
  • 5V compatible
  • Dimensions: 42 × 23.5 × 7.81 mm
  • Weight: 5.7 g



Resources for the Gadgeteer S-Plus Module

Below we have grouped together all the links that will allow you to quickly get your SPLUS-GM-502 Gadgeteer module up and running:

Schematic

3D view

3D models

Dimensions
