PiStorms Base Kit - Raspberry Pi Brain for LEGO Robot

PiStorms Base Kit - Raspberry Pi Brain for LEGO Robot

MindSensors | A-000000-02370

The PiStorms Base Kit gives you the chance to offer your NXT or EV3 creation the possibilities of a Raspberry Pi. PiStorms comes in the form of a shield you quite simply place on top of your board to enjoy more control than ever over your Lego motors and sensors.

End of life product
Get a quote online

Size Chart
Size Chart

PiStorms Base Kit: the shortest route between Raspberry Pi and Lego

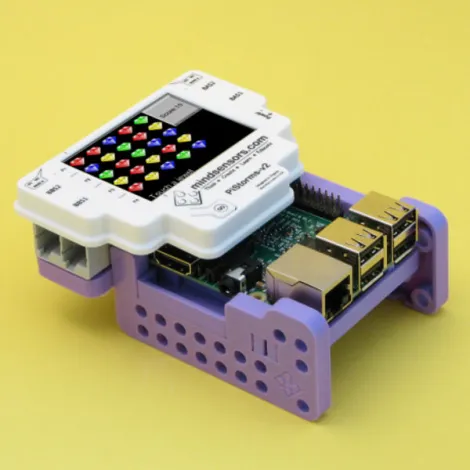

Because it’s designed to adapt to the GPIO mapping of the Raspberry Pi A+ and B+ and the Raspberry Pi 2 B, connecting PiStorms to your Pi to transform it into a Mindstorms Raspberry Pi is child’s play.

You’ll then have two separate compartments (one for controlling motors, the other for controlling sensors) equipped with four connectors and each with its own I2C address.

PiStorms is delivered equipped with its own 2.4” LCD touchscreen as well as an LED accessible from both the “motor” area and the “sensor” area during programming.

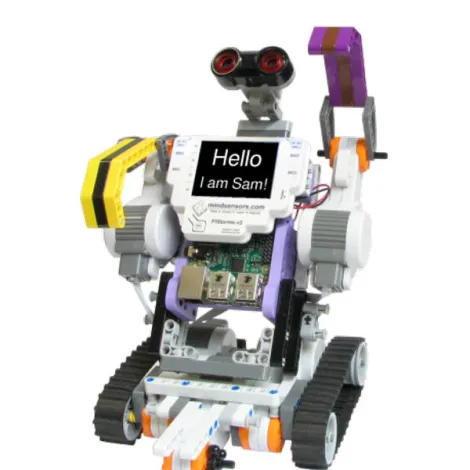

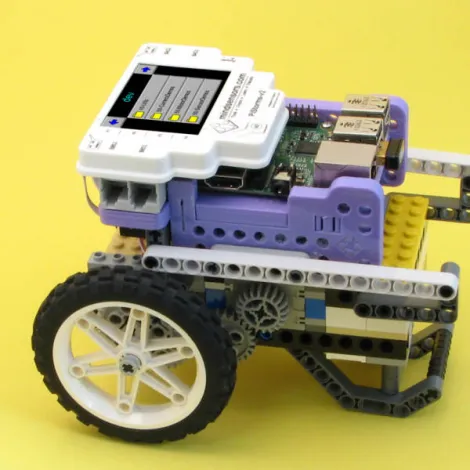

You can use the green terminals included on PiStorms to connect your power source (make sure you have a holder for 6 AA batteries or the rechargeable battery pack designed for PiStorms). Your PiStorms will then fit into a Lego base frame, to which you can add the EV3 or NXT parts of your choice.

A Lego Raspberry Pi offering absolute control of your motors and sensors

Integrating a Raspberry Pi into your Lego creation will open the door to brand new features, including:

  • Timed control of your motors, allowing you to run each motor for a specified amount of time;
  • Speed, brake and float control;
  • Abrupt stopping of motors;
  • Encoder control, allowing you to return the encoder to its initial position after stopping a motor;
  • Reading data from analogue NXT, I2C and EV3 sensors;
  • Reading the data of each motor encoder, etc.


Technical specifications of the PiStorms Base Kit

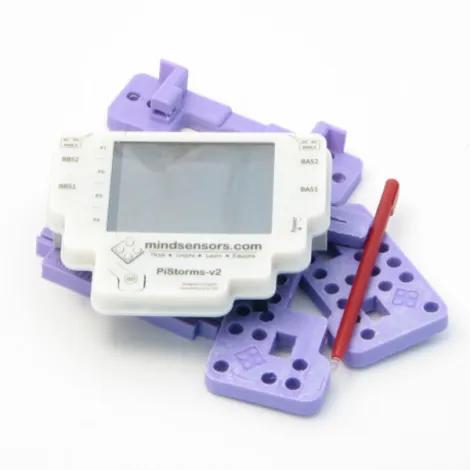

The PiStorms Base Kit contains:

  • 1 PiStorms controller V2
  • 1 Lego-compatible frame
  • 1 Lego stylus
  • Downloadable software and sample programs
  • Raspberry Pi 3 not included
  • Supply: 8V, 1.5A (minimum 6.8V and 1.5A with motors running)
  • 2 x 2 ports for EV3 or NXT motors (4 ports with an I2C address)
  • 2 x 2 ports for EV3 or NXT sensors (4 ports with another I2C address)
  • 2.4” LCD touchscreen
  • 1 LED


Resources for the PiStorms Raspberry Pi

A complete list of guides, tutorials and download links are waiting for you below, so you can make the very most of your PiStorms Base Kit!
