Pair of Pololu 12 CPR, 2.7–18V Magnetic Encoders for Micro Metal Gearmotors (HPCB compatible)
Pololu Robotics & Electronics | A-000000-03176
€7.80
Tax included
Including €0.01 for ecotax
With this pair of Pololu 12 CPR, 2.7–18V magnetic encoders for micro metal gearmotors, you can equip your micro metal gearmotors with quadrature encoders with Hall effect sensors and a magnetic disc. They are designed specifically for Pololu micro metal gearmotors that have an extended back shaft.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
A pair of 12 CPR, 2.7–18V magnetic encoders for your Pololu micro metal gearmotors

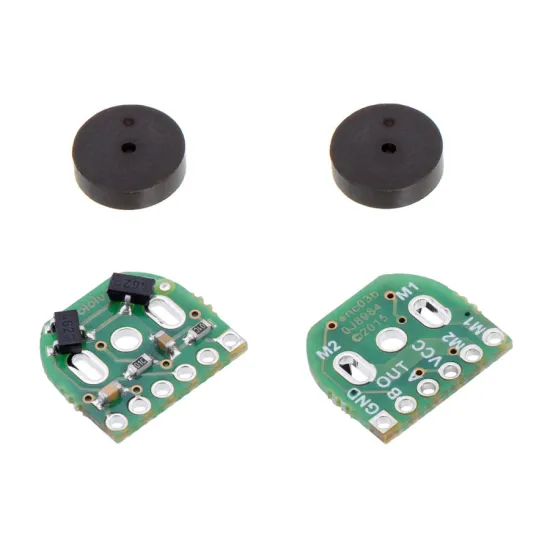

These magnetic encoders for Pololu micro metal gearmotors each consist of a 6-pole magnetic disc and two dual-channel Hall effect sensors. Magnetic disc rotations are converted into digital signals sent to your programming board or motor driver, at a resolution of 12 counts per revolution. First solder the M1 and M2 pins directly to your motor. Then solder 6 individual cables, a ribbon cable or a 6-pin header to the 6 output pins of each encoder.
