9 DoF Razor IMU M0

9 DoF Razor M0: a versatile and reprogrammable IMU

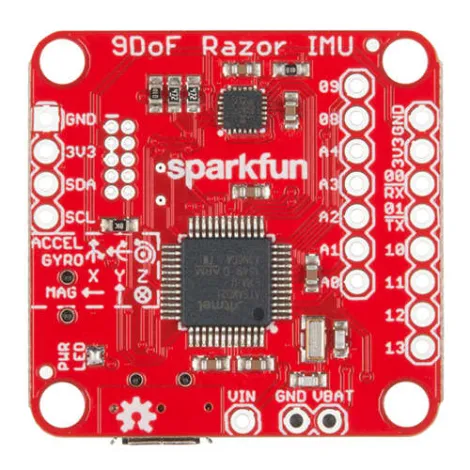

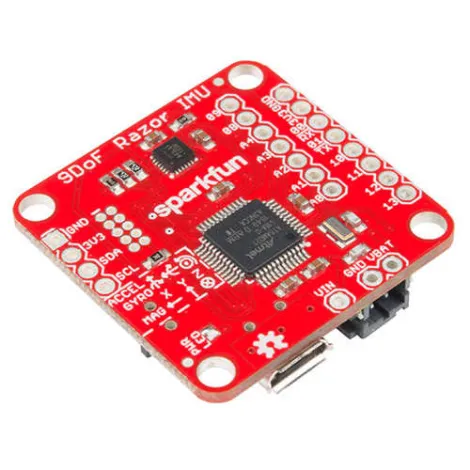

The 9 DoF Razor IMU M0 by SparkFun was created by combining an SAMD21 microprocessor equipped with a pre-installed firmware with an IMU with 3 sensors:

• 1 x 3-axis accelerometer
• 1 x 3-axis gyroscope
• 1 x 3-axis magnetometer

You can use the Razor M0 module with its original firmware, or you can reprogram it in Arduino via a USB connection. The microprocessor offers full hardware compatibility with Arduino and Arduino Zero.

How do I use my 9 DoF Razor IMU M0?

With the 9 DoF Razor IMU M0, you benefit from an ultra-precise navigation instrument, including calculation of Euler angles and quaternions. You can also use it to create a pedometer.

Technical specifications of the Razor IMU M0

• Integrated MPU-9250 IMU and SAMD21 microprocessor
• 1 LiPo battery charger
• 1 microSD card slot
• Pre-installed firmware to load and process accelerometer, gyroscope and magnetometer data, and/or quaternions and Euler angles
• Arduino-programmable via USB: new code library available for the IMU, with support for the chip’s digital motion processing capabilities
• Additional SAMD21 pins
• On/off switch

Resources for the Razor IMU M0

Below is a complete list of useful resources that we’re offering to help you better understand how the 9 DoF Razor IMU M0 works:

• Technical schematic
• EAGLE files
• User guide
• MPU-9250 datasheet
• SAMD21 datasheet
• Register Map
• MPU-9250 DMP Arduino library
• GitHub
