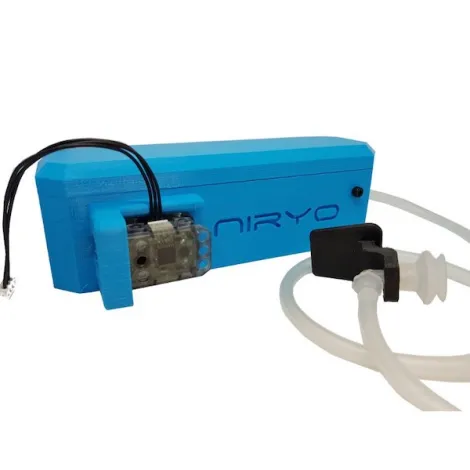

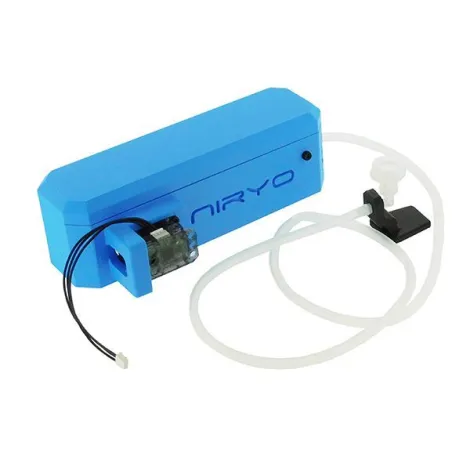

Vacuum pump and suction cup for Niryo One robot arm
Pneumatic device allowing your Niryo One robot to pick and place items with a suction cup.
Including €0.05 for ecotax
Vacuum pump and suction cup for Niryo One : expand the possibilities
Though, it is sometimes much easier to use a suction cup for pick and place actions - especially with flat items, or items with one flat surface, such as cards, box covers, cans...
Also, the Niryo One pump is particularly quiet, compare with other similar devices. Here a Dynamixel XL-320 servo actuates a syringe to pump the air out.
The whole vacuum system is enclosed in a nicely designed box !
Technical specifications of the Niryo One vacuum pump
- Weight (on the end effector tool) : 5 g
- Length (box) : 125 mm
- Suction cup diameter : 20 mm
- Picking distance from end effector base : 20 mm
- Servomotor type : Dynamixel XL-320
Resources for the Niryo One 6-axis robotic arm for education
