IoT Extension Board for micro:bit
Elecfreaks | A-000000-04267
€17.90
Tax included
Including €0.01 for ecotax

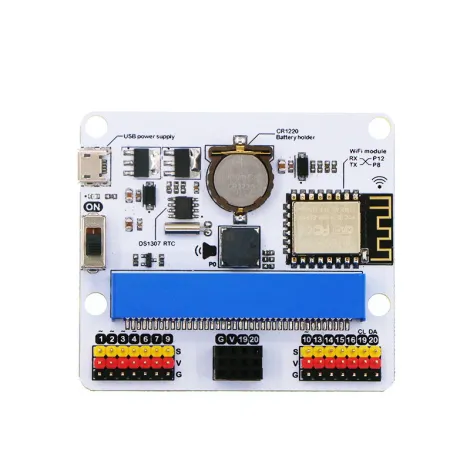

ElecFreaks’ IoT extension board embarks an ESP8266 module for handling serial and WiFi communication with the micro:bit board.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
iot:bit Board: help your pupils progress with the Internet of Things

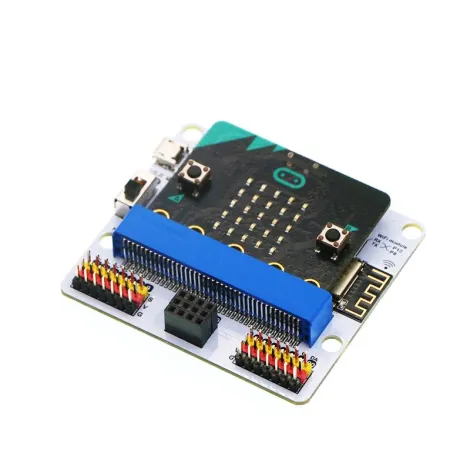

The ESP8266 module included in the IoT extension board for micro:bit enables you to create many connected projects and to introduce your pupils to the Internet of Things. Your micro:bit board inserts easily in the slot provided for this purpose. Simply open your MakeCode programming editor to launch a new experiment in your classroom.
The RTC timing is powered by a simple CR1220 button cell (not included). The iot:bit board can be powered via a USB port.
An extension board for adding many devices
The iot:bit extension board breaks out all the ports on your micro:bit as GVS connectors, which makes it easy to connect many micro:bit compatible modules using simple 3-wire GVS cables, including Octopus modules. The extension board also features SPI and I2C interfaces for adding devices such as an OLED display or a BME280 temperature sensor.
It’s also worth noting that the mounting holes on the board are compatible with LEGO bricks, so children can design fun creations they can identify with!
Technical specifications of the iot:bit Extension Board
- Power supply: USB / 5V
- Max. power: 800 mA
- Operating temperature: -25 to 80°C
- WiFi module: ESP12F
- Passive buzzer
- DS1307 RTC module
- RTC power supply: CR1220 coin cell (not included)
- Primary port: the serial port can map the IO port
- Coding
- I2C port lead: pins 19 and 20, only for I2C pin
- SPI port lead: pins 14 and 15, for common I/O
- Dimensions: 71 x 63 x 23 mm
- PCB thickness: 1.5 mm
- Mounting hole diameter: 2.4 mm
- Weight: 36 g
Ressources for the BBC micro:bit board
Ready to adopt micro:bit in your school? Check out the full documentation which we’ve provided here!
ElecFreaks’ IoT extension board embarks an ESP8266 module for handling serial and WiFi communication with the micro:bit board.
