QTR-8RC Infrared Reflectance Sensor Array

QTR-8RC Infrared Reflectance Sensor Array

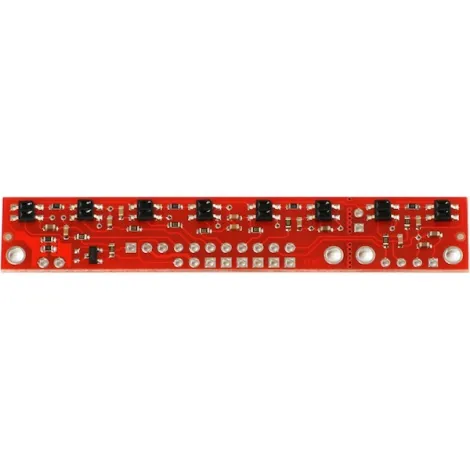

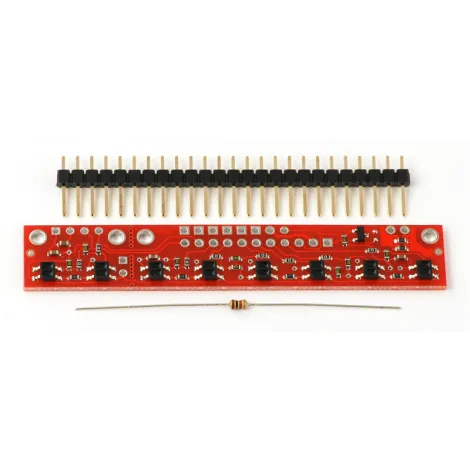

This Infrared Reflectance Sensor Array comprises a QTR-8RC line sensor module, which can also be used to detect objects or reflective surfaces. It is ideal for making your mobile robots truly smart and independent, or for any other project requiring this type of measurement.
€8.26
Tax included

Including €0.01 for ecotax

Quantity 9 Available
Get a quote online

Size Chart
x
Size Chart

Infrared Reflectance Sensor Array: fail-safe sensitivity, maximum energy savings

This Infrared Reflectance Sensor Array’s two main qualities?

First, its acuity, which is enhanced by its digital I/O-measurable output (more sensitive than an analogue output with voltage divider bridge). Then its lower energy consumption, thanks to its 8 pairs of infrared transmitters and sensors arranged in series and spaced at a maximum distance of 9.5 mm (effectively halving the sensor’s consumption).

It is also an extremely lightweight module, since it weighs barely more than 3 g. The MOSFET transistor equipping this sensor module can disable its infrared LEDs according to its needs, hence reducing its energy consumption accordingly at times when your project doesn’t require use of the sensor, or when it requires use of an infrared sensor alone.

Uses of the QTR-8RC Infrared Reflectance Sensor Array

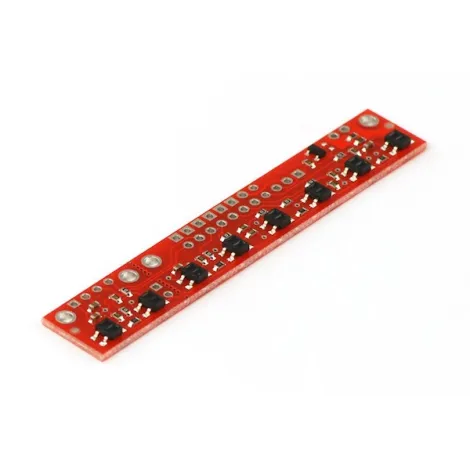

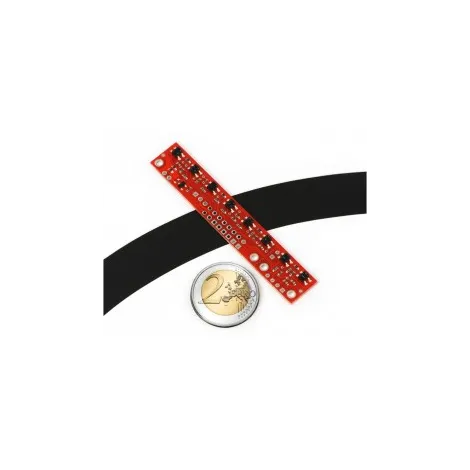

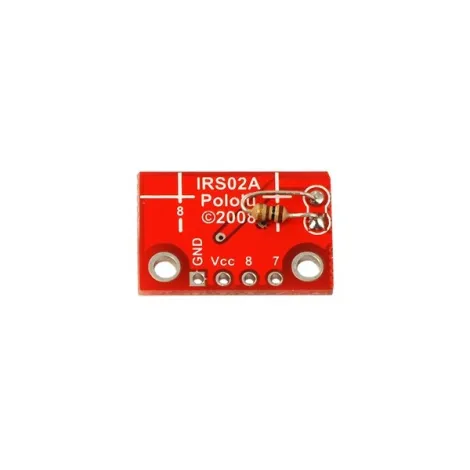

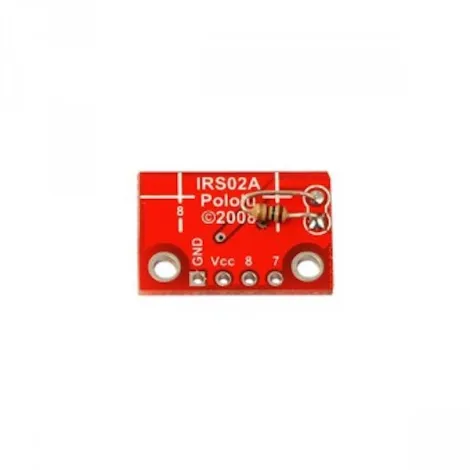

This QTR-8RC Infrared Reflectance Sensor Array is used mainly as a line sensor, making it the ideal module for a line-following robot. But it can also be used to detect objects, or even reflective surfaces. Note also that, depending on your project, it is possible to split this array of 8 sensors to obtain 6 sensors on the one hand and 2 on the other.

Technical specifications of the QTR-8RC Infrared Reflectance Sensor Array

  • Dimensions: 74.93 mm x 12.7 mm x 3.175 mm (without header pins)
  • Operating voltage: 3.3–5.0V
  • Supply current: 100 mA
  • Outputs: 8 digital I/O compatible outputs that can be read as a timed high pulse
  • Optimal sensing distance: 3 mm
  • Maximum sensing distance: 9.5 mm
  • Weight: 3.09 g (without header pins)
  • Module supplied with 100 Ω resistor and connector



Resources for the QTR-8RC Infrared Reflectance Sensor Array

To find out a little more about QTR-8RC Infrared Reflectance Sensor Arrays, we recommend that you take a look at the following documentation

QTR-8RC Infrared Reflectance Sensor Array User guide

QTR-8RC Infrared Reflectance Sensor Array User guide

QTR-8RC Infrared Reflectance Sensor Array Usage information

QTR-8RC Infrared Reflectance Sensor Array Usage information

QTR-8RC Infrared Reflectance Sensor Array Arduino library

QTR-8RC Infrared Reflectance Sensor Array Arduino library

QTR-8RC Infrared Reflectance Sensor Array AVR C/C++ library

QTR-8RC Infrared Reflectance Sensor Array AVR C/C++ library

Step-by-step instructions for building courses for robots (with line following) with QTR-8RC Arrays

Step-by-step instructions for building courses for robots (with line following) with QTR-8RC Arrays

Data sheet

Code douanier
95030070
Origine
US
