Booster K1 humanoid robot
Booster Robotics | A-000000-07707
Price upon request
The Booster K1 is a humanoid robot designed for education, research, and interactive demonstration. It combines mobility, computing power, and ergonomics in a compact, ready-to-use format.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
Booster K1: a compact, powerful and accessible humanoid robot for education and research
Key points
- Compact humanoid: 0.95 m ~20 kg
- 22 DoF: smooth motions + locomotion
- Torque-controlled joints + dual encoder
- Onboard AI: 48 / 117 / 200 TOPS (depending on the version)
- Sensors: 3D/binocular camera, 9-axis IMU, microphone array, speaker
- Battery life: 50 min to 1h20 (charge ≤ 1h)
- Connectivity: Wi-Fi 6, Bluetooth 5.2, Ethernet
- Applications: STEM education, robotics/AI research, demonstrations and competitions (e.g., RoboCup)
Description
The Booster K1 is a compact humanoid robot (95 cm) designed to learn, test and develop projects in robotics and artificial intelligence. With its 22 degrees of freedom (DoF), onboard sensors (binocular camera, 9-axis IMU, microphone, speaker) and Python / ROS compatibility, it naturally fits into STEM curricula, R&D labs and robotics competitions (e.g., RoboCup).
Positioned as a more accessible alternative to the Booster T1, the K1 retains excellent responsiveness and precise locomotion, while favoring a lighter, easy-to-transport format for intensive use in classrooms, labs or demonstrations.
Three versions of the Booster K1: Geek, Edu and Pro
- Geek version (makers / enthusiasts):
- Compute: Qualcomm QCS 8550 – 48 TOPS
- Battery: 2Ah
- Battery life: 30 min
- Edu version (education):
- Compute: NVIDIA Jetson Orin NX 8GB – 117 TOPS
- Battery: 5Ah
- Battery life: 80 min
- Transport case
- Pro version (R&D / advanced AI):
- Compute: NVIDIA Jetson AGX Orin 32GB – 200 TOPS
- Battery: 5Ah
- Battery life: 80 min
- Transport case

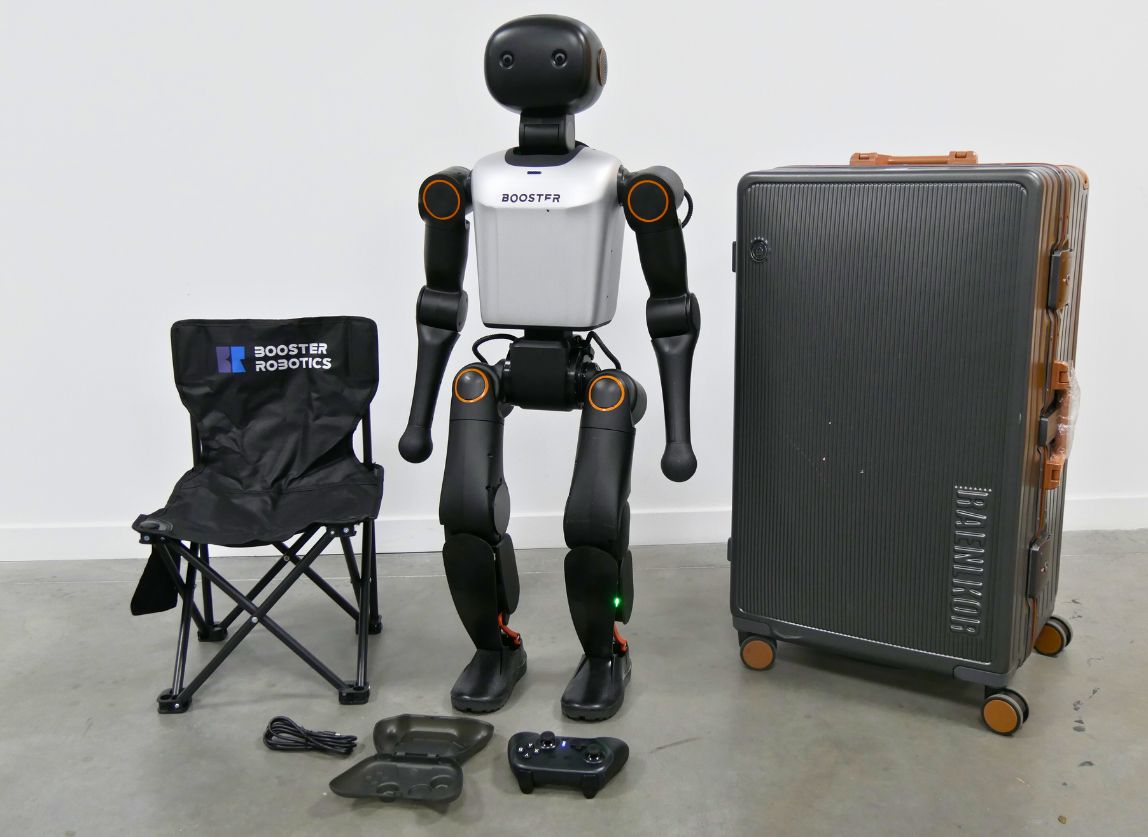

Portable, ready-to-use format
- No assembly required: fits in a case, ideal for moving between classrooms, labs or events.
- Height: 95 cm
- Weight: 19.5 kg
Locomotion and control: 22 DoF for realistic movements
- 22 degrees of freedom (DoF): legs (6 DoF × 2), arms (4 DoF × 2), head (2 DoF).
- Torque-controlled joints: hybrid torque / speed / position control + dual-encoder modules.
- Typical battery life: 50 min to 1h20 (depending on scenario and battery).
- Capabilities: walking, balance maintenance, joint flexion, interaction with objects.
AI computing power
- GPU: up to 200 TOPS for complex AI tasks (object recognition, machine learning).
- Programming environment: supports languages such as Python, ROS (Robot Operating System), and integrated educational tools.
- AI capabilities: visual recognition (depth camera), interpretation of voice commands (microphone array), reinforcement learning for adaptive tasks.
Onboard sensors
- Depth camera: for 3D perception and navigation.
- 9-axis IMU: tracking balance and motion.
- Microphone array: speech recognition and sound localization.
- Speaker: interaction with users via audio messages.
- Tactile sensors: detects physical contact for safe interactions.
Connectivity and compatibility
- WiFi 6
- Bluetooth 5.2
- Gigabit Ethernet RJ45
- Secondary development via API/SDK.
Booster K1 humanoid robot use cases
STEM and robotics education
- Introduction and advanced learning: Python, ROS, perception, control.
- Educational projects: onboard AI, locomotion, human-robot interaction.
- Lab work: sensor calibration, joint control, network integration.
Research and R&D
- Prototyping: locomotion, balance, light manipulation, HRI.
- Onboard AI: vision, tracking, recognition, learning and experimental scenarios.
Competitions and demonstrations (RoboCup, trade shows, open days)
- A portable, robust humanoid platform to demonstrate algorithms.
- Interactive workshops and educational robotics demos.
Champion of the “KidSize” category at RoboCup Soccer 2025
Technical specifications of the Booster K1 humanoid robot
| Dimensions | 95x40x18 cm |
| Leg length | 46 cm |
| Arm span | 39 cm |
| Weight | approx. 19.5 kg |
| Total degrees of freedom | 22 |
| Degrees of freedom per leg | 6 |
| Degrees of freedom per arm | 4 |
| Degrees of freedom for the head | 2 |
| Maximum knee joint torque | 60 N.m |
| Encoder | dual encoder |
| Camera | 3D camera |
| IMU | 9-axis IMU |
| Voice module | Microphone array + speaker |
| Audio alerts | Low-battery reminder, joint overheating reminder |
| Battery capacity | 2Ah or 5Ah |
| Battery life | 50 min ~ 1h20 |
| Charging time | ≤ 1 hour |
| Processor | Qualcomm QCS 8550 / Jetson Orin NX 8GB / Jetson Orin NX 8GB or NVIDIA Jetson AGX Orin 32GB |
| AI performance | 48 / 117 / 200 TOPS |
| Interface | Gigabit Ethernet RJ45 |
| Wireless connection | WIFI 6 |
| Bluetooth | Bluetooth 5.2 |
| Certification standards | CE/FCC |
| Walking noise | ≤70 dB |
| Operating temperature | -10°C ~ 45°C |
Booster K1 resources
FAQ – Booster K1
Who is the Booster K1 for?
For educational institutions (STEM/robotics), research labs and teams that want a compact humanoid platform to develop, test and demonstrate algorithms.
Which version should you choose: Geek, Edu or Pro?
- Geek: for “plug & play” prototyping and coding on a controlled budget.
- Edu: the best choice for education (support, accessories, 5Ah battery, education solution).
- Pro: for R&D and more demanding AI workloads (maximum computing power).
Can you develop in Python / ROS?
Yes, the K1 is suitable for Python projects and ROS integration (depending on your stack and needs). This makes it practical for research and robotics courses.
Which sensors are integrated for perception and interaction?
Binocular/3D camera, 9-axis IMU, microphone array and speaker: enough to work on vision, posture and voice interaction.
What battery life and charging time?
In practice, battery life is about 50 min to 1h20 depending on usage, with a charging time ≤ 1 hour.
Can it be used in competition (e.g., RoboCup)?
Yes, its humanoid format, kinematics (22 DoF) and sensors make it a relevant base for demos and certain competition scenarios, depending on your rules and discipline.
What is included with the purchase?
Contents vary by version (2Ah or 5Ah battery, case, etc.). In all cases, the robot is delivered ready to use with essential accessories (remote control, charger, seat/stand).
What support / warranty is offered?
Geek: 3-month warranty. Edu/Pro: 12-month warranty + 1-year technical support (response within 24 business hours).
What information should you prepare for a quotation request?
Please specify: your budget (even if it’s an estimate), your project timeline (short term, awaiting funding, early study phase before the project, etc.), your address, and one sentence describing your project.
