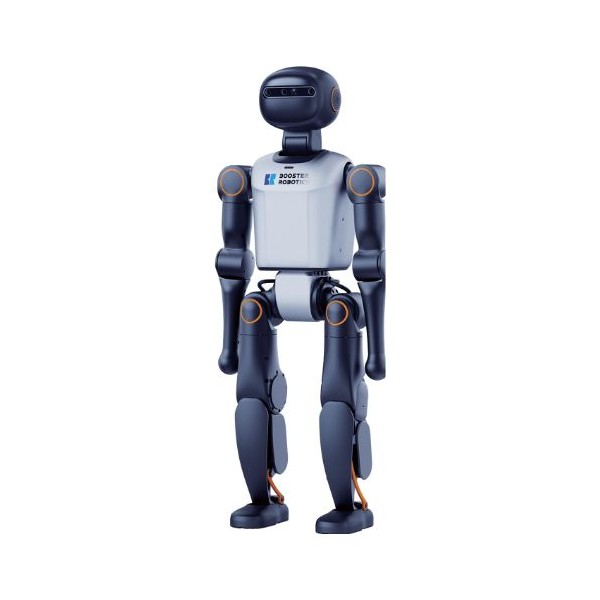

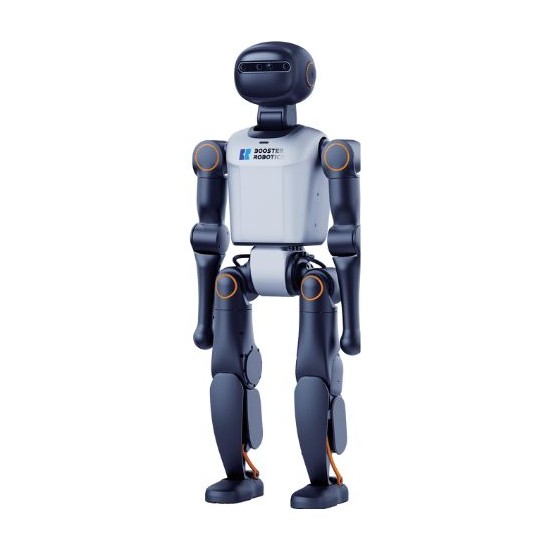

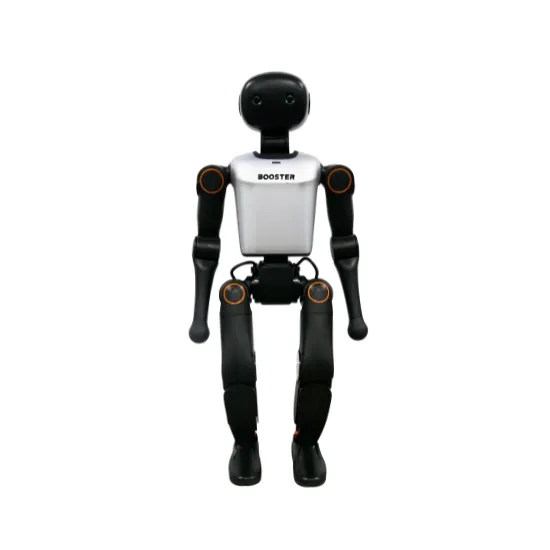

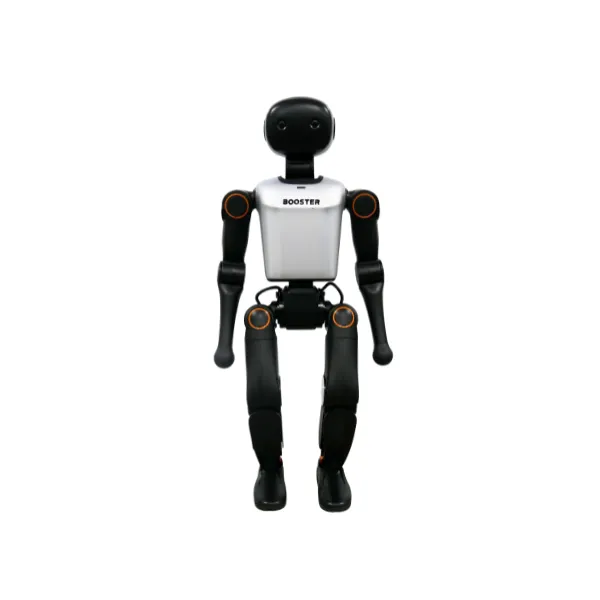

Booster K1 humanoid robot

Booster K1 humanoid robot

Booster K1 humanoid robot
Booster Robotics | A-000000-07707
Price upon request

The Booster K1 is a humanoid robot designed for education, research, and interactive demonstration. It combines mobility, computing power, and ergonomics in a compact, ready-to-use format.

Quantity
Delivery within 3 to 4 weeks

Create a cart and turn it into a quote instantly!
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

Booster K1: A Compact, Powerful, and Accessible Humanoid

The Booster K1 is a compact, powerful, and easy-to-program humanoid robot. Ideal for STEM education, it offers excellent value for schools and research laboratories.

Designed as the accessible version of the T1, the K1 stands out with a lighter design, half the joint power, and optimized autonomy. Despite this, it remains responsive, precise, and perfectly suited for intensive use in laboratories as well as RoboCup competitions.

Portable and ready-to-use format

  • No assembly required: transportable in a single suitcase, ideal for classrooms, labs, or events.
  • Height: 95 cm
  • Weight: 19.5 kg

Advanced mobility

  • 22 Degrees of Freedom (DoF): dynamic joints (hip, knee, ankle, arms, head) for smooth, realistic movements.
  • Walking autonomy: up to 40 min (in active mode)
  • Movement capabilities: walking, balancing, joint bending, and object interaction.
  • Navigation system: integrated sensors for obstacle avoidance and real-time localization.

AI computing power

  • GPU: up to 100–200 TOPS for complex AI tasks (object recognition, machine learning).
  • Programming environment: supports languages like Python, ROS, and integrated educational tools.
  • AI capabilities: visual recognition (depth camera), voice command interpretation (microphone array), and reinforcement learning for adaptive tasks.

Embedded Sensors

  • Depth camera: for 3D perception and navigation.
  • 9-axis IMU: tracks balance and movement.
  • Microphone array: voice recognition and sound localization.
  • Speaker: interacts with users through audio messages.
  • Touch sensors: detects physical contact for safe interactions.

Connectivity and compatibility

  • WiFi 6
  • Bluetooth 5.2
  • Gigabit Ethernet RJ45
  • Secondary development via API/SDK.

What is it for?

STEM Education

  • Learning programming (Python, ROS).
  • Study of robotics and AI systems.
  • Mechanical and electronic engineering projects.

Research

  • Experiments in mobile robotics, visual perception, and human-robot interaction.
  • Development of AI algorithms for complex tasks.

Events and Demonstrations

  • Demonstration of cutting-edge educational technologies.
  • Interactive workshops for the public.

Booster K1 Humanoid Robot Technical Specifications

  • Height (standing): 0.95 m
  • Weight: approx. 19.5 kg
  • Total degrees of freedom: 22
  • Degrees of freedom per leg: 6
  • Degrees of freedom per arm: 4
  • Degrees of freedom for the head: 2
  • Battery capacity: 48 V, 2 Ah
  • Battery life: 50 minutes
  • Charging time: ≤ 1 hour
  • Lifecycle: ≥ 500 cycles
  • Processor: Jetson Orin NX 16 GB, AI performance: 157 TOPS
  • Camera: 3D camera
  • Microphone: microphone array
  • Speaker: 1
  • Wireless connection: WIFI 6
  • Bluetooth: Bluetooth 5.2
  • Certification standards: CE/FCC
  • Operating noise: ≤70 dB
  • Operating temperature: -10°C ~ 45°C
