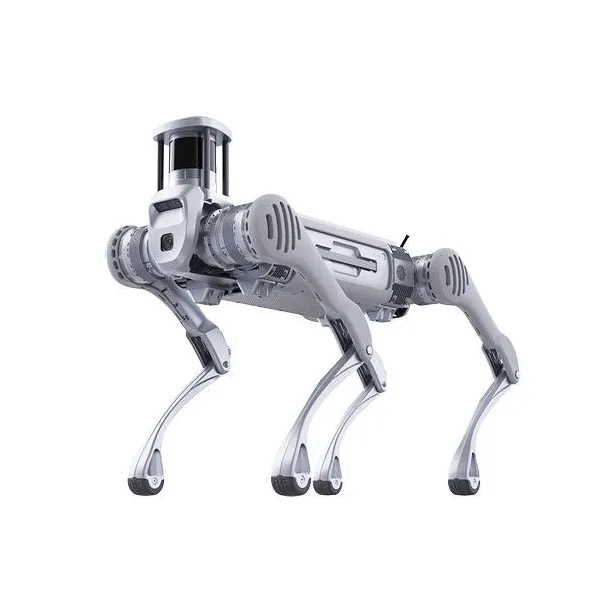

B2 Quadruped Robot Dog

B2 Quadruped Robot Dog

B2 Quadruped Robot Dog
Unitree Robotics | A-000000-06960
Price upon request

B2 is an industrial quadruped robot capable of achieving a remarkable speed of 6 m/s (21,6 km/h).

Quantity

Size Chart
x
Size Chart
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

B2 robot dog: an exceptional agility and remarkable performance

The quadruped robot B2 from UNITREE Robotics is designed for research and development. The B2 robot dog has been developed with a number of high level technical features:

  • Fast: capable of reaching a speed of 6 meters per second (21.6 km/h)
  • All-terrain: it can negotiate obstacles 40 cm high, climb steps 20~25cm high and move over uneven terrain
  • Multi-purpose: equipped with knee joint motors providing 360 N.m of torque, 170% increase in joint performance
  • Long-lasting: it can operate for more than 5 hours without a charge and cover more than 20 km, an increase of 200% in its endurance

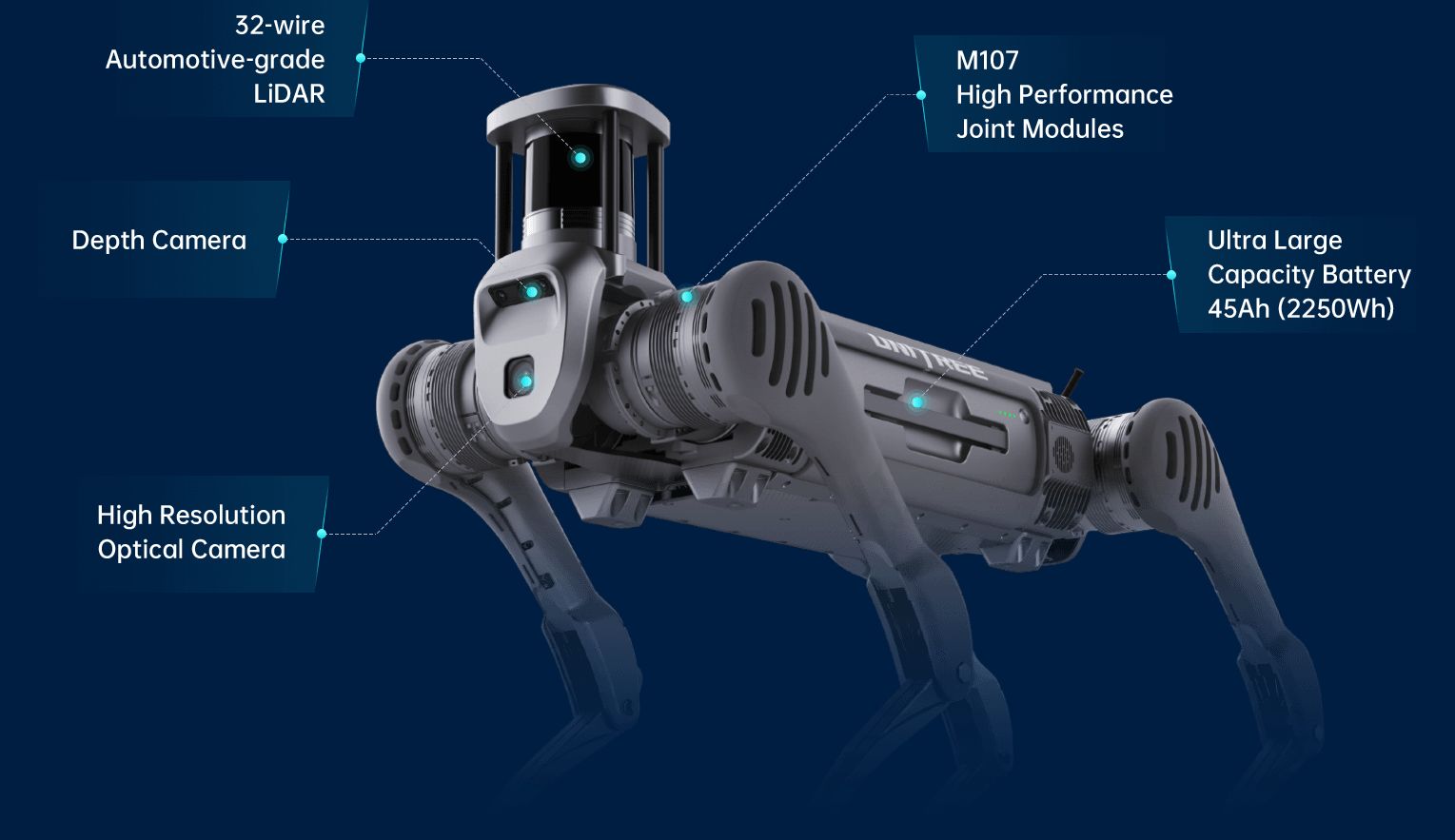

The B2 boasts high-quality equipment:

Ready to use right out of the box, the B2 robot can be used as a research tool in various applications. You can also add accessories, for example a LiDAR, a camera, or even the Z1 robot arm to make it even more powerful.

A quadruped robot with both legged and wheeled configurations

The Unitree B2 excels in transitioning between leg and wheel modes, surpassing endurance limits. Thanks to its innovative structural design, this transition is made possible, providing unparalleled adaptability. (optional)

Quadruped robot B2 by Unitree Robotics

Videos

Technical Specifications of the Quadruped Robot B2

  • Dimensions (standing): 1098 mm × 450 mm × 645 mm
  • Dimensions (lying down): 880 mm × 460 mm × 330 mm
  • Weight (with battery): 60 kg
  • Battery performance: Battery capacity 45Ah(2250Wh), voltage 58V
  • Endurance capacity: Battery autonomy 4-6h, Empty walking > 5h, and mileage > 20km; Walking with a load of 20 kg > 4h, and mileage > 15km
  • Roller feet: optional
  • Max payload (standing): max. 120 kg
  • Max payload (walking): > 40kg
  • Continuous stair climbing: steps of 20~25cm
  • Single obstacle traversal: climb and descend stairs of 40 cm while walking.
  • Operating temperature: -20° ~ 55°
  • Climbing angle: > 45°
  • Walking speed: > 6m/s
  • Jump width: 0.5~1.2m
  • Maximum jump distance: > 1.6m
  • Protection: > IP67
  • Control and perception: Intel Core i5×1, Intel Core i7×3, Nvidia Jetson Orin NX×1 (varies depending on configurations)
  • Sensor: 3D LiDAR ×1 + Depth Camera ×2 + Optical Camera ×2 (varies depending on configurations)
  • External interface: 1000M-Base-Ethernet×, USB3.0×4, 12V×4, 5V×1, 24V×4, BAT×1
