B2 Quadruped Robot Dog with wheels
Unitree Robotics | A-000000-06963
Price upon request
UNITREE Robotics recently unveiled its latest masterpiece (end of 2023): the B2, an industrial quadruped robot capable of achieving a remarkable speed of 6 m/s (21,6 km/h).
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
B2 robot dog: an exceptional agility and remarkable performance
The quadruped robot B2 from UNITREE Robotics is designed for research and development. The B2 robot dog has been developed with a number of high level technical features:
- Fast: capable of reaching a speed of 6 meters per second (21.6 km/h)
- All-terrain: adapts to many types of challenging terrains to ensure steady movements on slippery or uneven surfaces
- Steady: can climb stairs with extreme stability and balance during ascent, up to 40 cm high
- Multi-purpose: equipped with knee joint motors providing 360 N.m of torque, 170% increase in joint performance
- Long-lasting: offers a very long battery life, with uninterrupted walking capability of over 5 hours without a load , and covering a distance of more than 20, representing a 200% increase in endurance, compared to the B1 robot dog
The B2 boasts high-quality equipment:
- RS-Helios-32 3D LiDAR (optional)
- Depth camera
- High-performance m107 joint modules
- Very large capacity 45Ah (2250Wh) battery
- High-resolution optical camera
Ready to use right out of the box, the B2 robot can be used as a research tool in various applications.

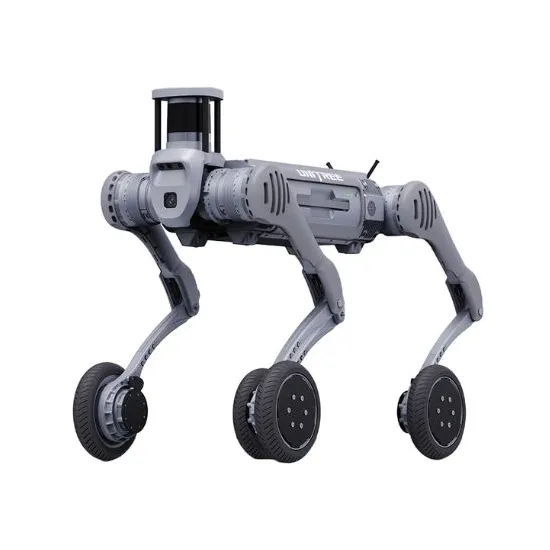

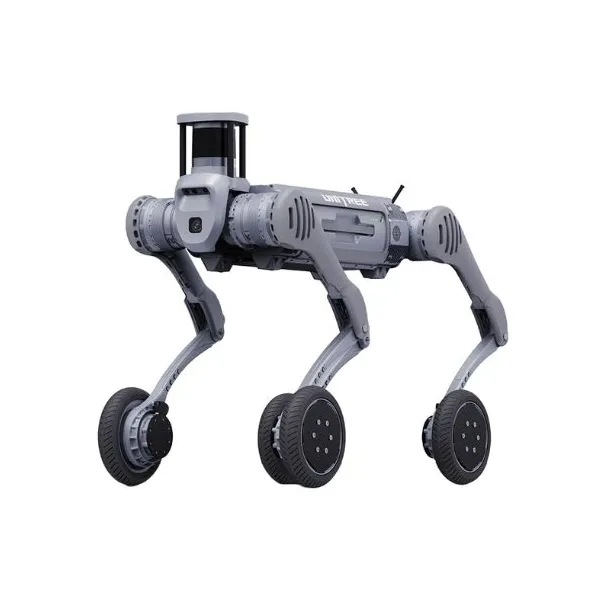

A quadruped robot with both legged and wheeled configurations
The Unitree B2 excels in transitioning between leg and wheel modes, surpassing endurance limits. Thanks to its innovative structural design, this transition is made possible, providing unparalleled adaptability.
Technical Specifications of the Quadruped Robot B2
- Dimensions (standing): 1098 mm × 450 mm × 645 mm
- Dimensions (lying down): 880 mm × 460 mm × 330 mm
- Weight (with battery): 60 kg
- Battery performance: Battery capacity 45Ah(2250Wh), voltage 58V
- Endurance capacity: Battery autonomy 4-6h, Empty walking > 5h, and mileage > 20km; Walking with a load of 20 kg > 4h, and mileage > 15km
- Roller feet: optional
- Max payload (standing): max. 120 kg
- Max payload (walking): > 40kg
- Continuous stair climbing: steps of 20~25cm
- Single obstacle traversal: climb and descend stairs of 40 cm while walking.
- Operating temperature: -20° ~ 55°
- Climbing angle: > 45°
- Walking speed: > 6m/s
- Jump width: 0.5~1.2m
- Maximum jump distance: > 1.6m
- Protection: > IP67
- Control and perception: Intel Core i5×1, Intel Core i7×3, Nvidia Jetson Orin NX×1 (varies depending on configurations)
- Sensor: 3D LiDAR ×1 + Depth Camera ×2 + Optical Camera ×2 (varies depending on configurations)
- External interface: 1000M-Base-Ethernet×, USB3.0×4, 12V×4, 5V×1, 24V×4, BAT×1
Resources for the Quadruped Robot B2
UNITREE Robotics recently unveiled its latest masterpiece (end of 2023): the B2, an industrial quadruped robot capable of achieving a remarkable speed of 6 m/s (21,6 km/h).
