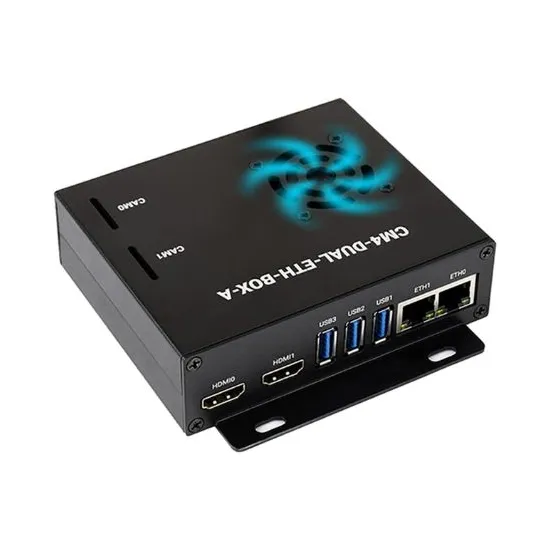

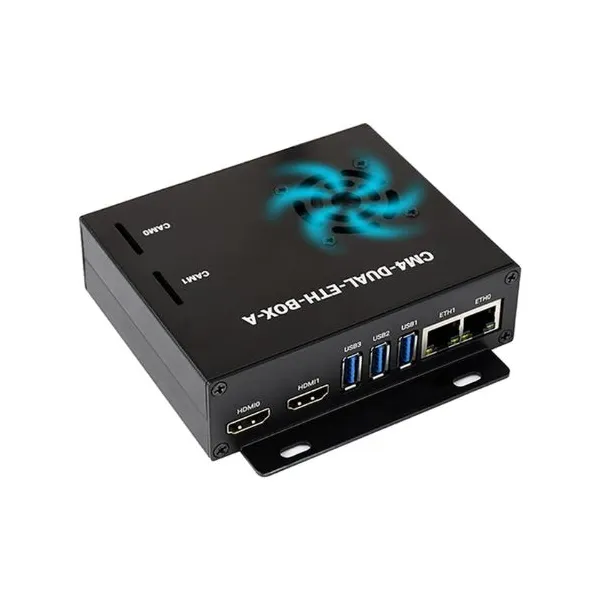

Mini PC with dual Gigabit Ethernet based on the Raspberry Pi Compute Module 4

Dual Gigabit Ethernet Mini PC based on Raspberry Pi Compute Module 4

This mini PC based on Raspberry Pi Compute Module 4 integrates the Waveshare CM4-DUAL-ETH-BASE board and makes it easy to build a compact system for embedded applications, network gateways, or industrial projects.

Designed to accommodate a Raspberry Pi Compute Module 4 (not included), it provides multiple interfaces as well as dual Gigabit Ethernet, making it suitable for network applications, edge computing systems, and IoT platforms.

The metal case includes an integrated cooling fan and air vents to ensure efficient heat dissipation. Wall mounting holes are also available on both sides for easier installation.

Key features

• Compatible with all Raspberry Pi Compute Module 4 variants
• Dual Gigabit Ethernet RJ45 ports
• Robust metal enclosure with cooling fan
• Multiple interfaces for embedded applications
• Wall mount support
• Access to the 40-pin Raspberry Pi GPIO header

Available interfaces

• 2 × Gigabit Ethernet RJ45
• 3 × USB 3.2 Gen1
• 2 × HDMI (video output up to 4K 30 fps)
• 1 × MIPI DSI display port
• 2 × MIPI CSI-2 camera ports
• 1 × 40-pin GPIO header
• 1 × MicroSD slot (for CM4 Lite)
• RTC with battery holder

Technical specifications

• Integrated board: Waveshare CM4-DUAL-ETH-BASE
• Compatibility: Raspberry Pi Compute Module 4
• Ethernet ports: 2 × Gigabit Ethernet
• USB ports: 3 × USB 3.2 Gen1
• Video: 2 × HDMI (4K 30fps)
• Camera ports: 2 × MIPI CSI-2
• Display port: 1 × MIPI DSI
• GPIO: 40-pin Raspberry Pi header
• Power input: 7 V – 36 V
• Cooling: 5 V / 12 V fan with speed control
• Clock: RTC with battery holder
• Dimensions: 109 × 91.5 mm

Package contents

• 1 × CM4-DUAL-ETH-BASE board
• 1 × metal case (top and bottom parts)
• 1 × 4010 PWM 12 V fan
• 1 × screwdriver
• 1 × screw pack
• 1 × 12 V 2 A power adapter

Note: Raspberry Pi Compute Module 4 is not included.
