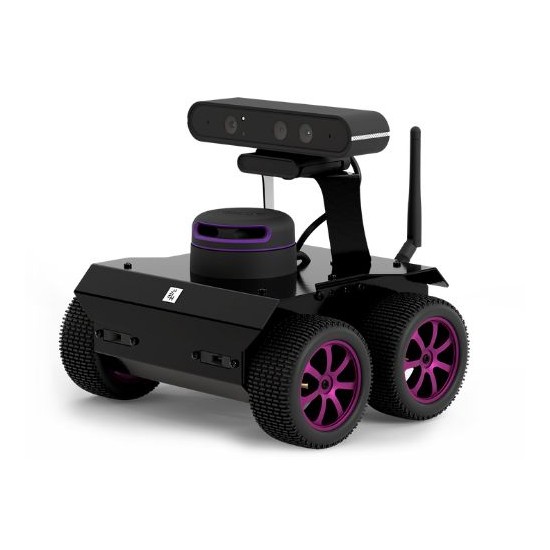

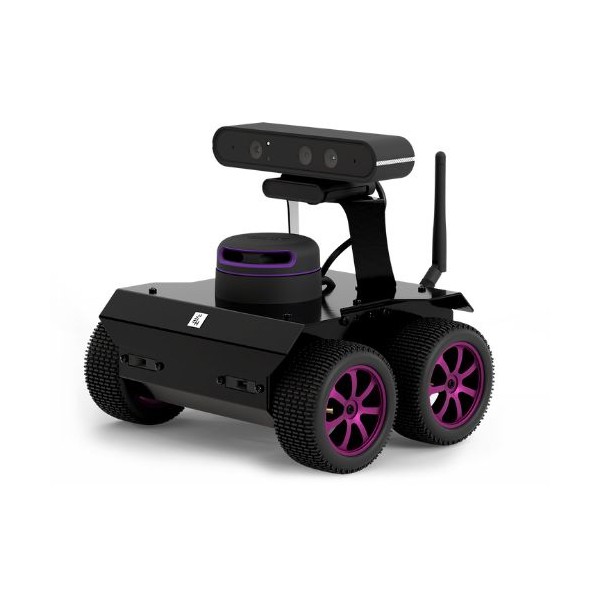

ROSbot 2 Pro Open-Source Mobile Robot (ROS Compatible)

ROSbot 2 Pro Open-Source Mobile Robot (ROS Compatible)

ROSbot 2 Pro Open-Source Mobile Robot (ROS Compatible)
Husarion | A-000000-06629
5,325.60 €
20 perc. French VAT inc.

The advanced ROSbot 2 Pro robotic platform has been specifically designed to provide a comprehensive experience in the field of autonomous robotics, promoting learning and development.

Delivery within 5 to 10 days

Size Chart
Size Chart
Payment methods (see T&C)
Debit card
Payment by invoice
Wire transfer

ROSbot 2 Pro: Advanced Platform for Autonomous Robotics

With remarkable power, this robot relies on the Intel Atom x5 Z8350 processor. It offers an array of comprehensive learning resources, including detailed manuals, tutorials for ROS and ROS2, as well as Gazebo simulation models. These features make it an essential choice for Research and Learning in autonomous vehicles. Moreover, this 4-wheel mobile platform has DC motors, providing precise maneuverability and exceptional agility.

Advanced Sensors

The robot integrates various advanced sensors that enhance its capabilities:

  • Orbbec Astra RGB Camera: This camera allows the robot to capture images while discerning the depths of its environment.
  • LIDAR for Mapping: Thanks to the Slamtec RPLIDAR A3, the ROSbot 2 Pro can create real-time maps, thus facilitating autonomous navigation.
  • Infrared Distance Sensor: The VL53L0X distance sensor, based on time-of-flight technology, enables the robot to detect obstacles and ensure safe navigation.
  • Orientation Sensor: The BNO055 IMU, including an accelerometer and a gyroscope, ensures accurate and reliable navigation.
ROSBot Pro Husarion Diagram

Versatile Applications

The ROSbot 2 Pro offers an affordable solution for the rapid development of autonomous robots. It can be a foundation for creating customized service, inspection, and swarm robots

Whether you are a student, researcher, or robotics enthusiast, the ROSbot 2 Pro positions itself as an ideal partner to explore advancements in modern robotic technology.

Discover also the ROSBOT 2R version based on the Raspberry Pi 4 (ARM64) processor and featuring a Slamtec RPLIDAR A2.

The ROSbot 2 Pro Robotic Platform includes:

  • ROSbot 2 Pro
  • Dedicated Charger
  • USB Ethernet Adapter
  • Aluminium Transport Case


Technical Specifications of ROSbot 2 Pro Robot

  • Dimensions with Camera and LiDAR: 200 x 235 x 220 mm
  • Dimensions without Camera and LiDAR: 200 x 235 x 106 mm
  • Weight: 2.84 kg (with Camera and LiDAR) / 2.45 kg (with Camera and LIDAR)
  • Max Speed: 1.0 m/s
  • Max Rotation Speed: 420°/s
  • Payload: up to 5 kg
  • Battery Life: 1h30 - 5h
  • Processor: Intel® ATOM™ x5-Z8350 (x64 architecture) up to 1.92 GHz, 4 GB DDR3L RAM, and 32 GB eMMC
  • IMU: BNO055 (accelerometer + gyroscope)
  • Distance Sensor: VL53L0X (time of flight)
  • Network: 2.4 GHz and 5 GHz 802.11b/g/n/ac wireless LAN
  • 4-wheel mobile platform with DC motors
  • Lithium-ion Batteries: 3 x 3500 mAh (with protection circuits)
  • RGB Camera: Orbbec Astra
  • LIDAR: Slamtec RPLIDAR A3
  • Rear panel providing interfaces for additional modules
  • Sturdy aluminum chassis
ROSBot Pro Husarion Technical Diagram

Resources for ROSbot 2 Pro Robot
