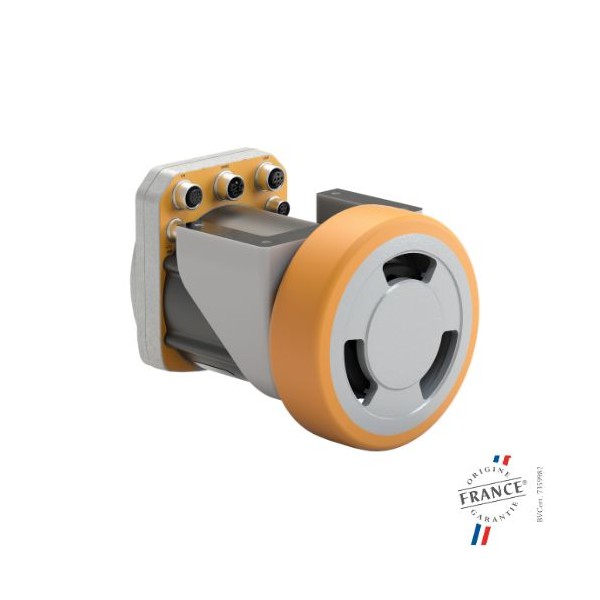

SWD® 125 Safety wheel drive
SWD® 125 Safety wheel drive
SWD® 125 Safety wheel drive

SWD® 125 Safety wheel drive

SWD® 125 Safety wheel drive
EZ-WHEEL | A-000000-07169
€2,799.60
20 perc. French VAT inc.

The SWD 125 safety drive wheel is designed for AGV/AMR mobile robots, logistics robots and research platforms that require a compact traction solution with controlled motion, compliant with functional safety requirements.

Ratio
-- Please select an item --
  • 14:1
  • 4:1
Brake
-- Please select an item --
  • No
  • Yes
Quantity
Delivery within 8 weeks
Ask for a quote

Create a cart and turn it into a quote instantly!
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

SWD 125 safety drive wheel for AGVs, AMRs and logistics robots

The SWD 125 safety drive wheel inherits the exclusive safety functions of the SWD range in a compact form factor, suitable for light- and medium-duty logistics robots. It integrates safe motion control and a safety encoder, enabling compliance with machinery safety standards for mobile robots.

Combined with safety laser scanners, the SWD 125 wheel can form a safety system rated SIL2 / PLd, compatible with safety scanners available on the market. The IP66 electronic control unit is suitable for industrial environments where robustness and reliability are required.

The SWD 125 range is available with two gearbox ratios, 4:1 and 14:1, to cover different needs in terms of speed, torque and push force:

  • 4:1 version (reference EW2A-125HN04x) for higher speeds up to 11 km/h and moved loads up to 500 kg.
  • 14:1 version (reference EW2A-125HN14x) for applications requiring higher torque and a push capacity up to 1,500 kg.

Possible applications

The SWD 125 safety drive wheel can be integrated into different types of robots and mobile platforms, both for research and industrial environments:

  • Logistics robots for transporting bins, pallets or carts in warehouses and factories.
  • AGVs (Automated Guided Vehicles) for automated material handling on predefined routes.
  • AMRs (Autonomous Mobile Robots) for autonomous navigation in dynamic environments.
  • Service robots in industrial or commercial environments requiring controlled and safe traction.
  • Mobile research platforms for laboratories and universities, dedicated to experiments in mobile robotics and functional safety.
  • Mobile industrial robots for assembly, inspection or in-house logistics applications.

Technical specifications of the SWD 125 safety drive wheel

  • Wheel diameter: 125 mm
  • Maximum vertical load: 250 kg (static)
  • Maximum moved load: up to 1,500 kg depending on version
  • Electronic control unit: IP66 protection rating
  • Tread: PU 80 Sh. A, flat profile
  • Safety functions: safe motion control and safety encoder, overall SIL2 / PLd safety level when combined with a safety scanner
  • Compatibility: compatible with safety laser scanners available on the market
  • Available versions:
    • 4:1 version – EW2A-125HN04x (Ref. ezSWD125IM.4x/C)
      • Target use: logistics robots, service robots, AGVs/AMRs
      • Speed: 0 to 11 km/h
      • Rated power: 200 W (S1)
      • Peak torque: 13 Nm
      • Push force: 20 daN, corresponding to approximately 500 kg moved
      • Option: parking brake /B
    • 14:1 version – EW2A-125HN14x (Ref. ezSWD125IM.14x/C)
      • Target use: mobile platforms, industrial robots, AGVs/AMRs
      • Speed: 0 to 3.2 km/h
      • Rated power: 185 W (S1)
      • Peak torque: 37 Nm
      • Push force: 60 daN, corresponding to approximately 1,500 kg moved
      • Option: parking brake /B
