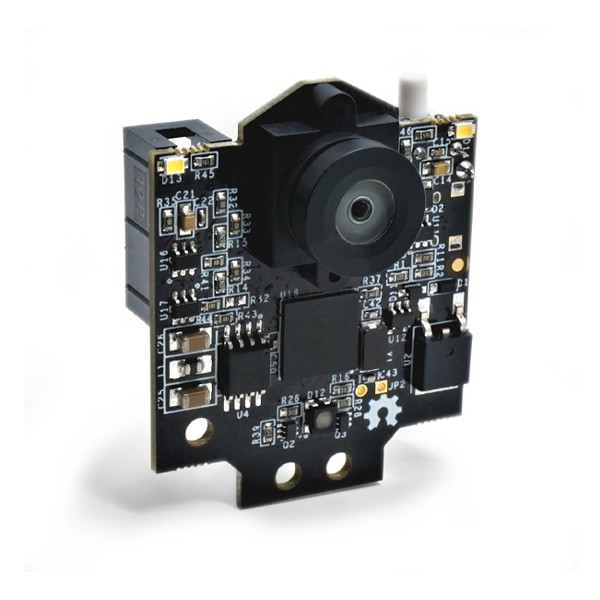

Pixy V2.1 Camera Sensor
With its new version of the camera sensor, Charmed Labs offers you a smaller and faster sensor to equip your creation! With its improved software and new mode, the Pixy2 V2.1 camera sensor could become your new favorite accessory for your robots!
Including €0.01 for ecotax
A new sensor for more possibilities.
This sensor works in a very simple way: it only detects the images you need and sends the corresponding data to your processor via 6 different channels: UART? SPI, I2C, USB, digital or analog!
If you wonder how this camera sensor detects these images, nothing simpler, it uses the principle of color recognition! This sensor can detect and record up to 7 different colors, numbered from 1 to 7, the first being the default color. To record the following colors, simply pass the object you want to be recognized in front of the object lens (a yellow ball, for example) while pressing the button at the top of the camera.
After completing this small manipulation, your camera will be able to recognize and track all objects whose color has been memorized. With its new “line detection” mode, your Pixy2 V2.1 camera sensor will allow your robot to follow a traced path, like a line on a sheet of paper for example, it can even decode the road signs!
Unlike its first version, the Pixy2 V2.1 is smaller but faster (60 frames per second instead of 50). Charmed Labs also worked on the PixyMon software to make it more intuitive and responsive. They also have improved their Arduino and Raspberry Pi libraries by adding examples to make them more understandable and to extend their functionality. The Pan Tilt kit has also been redesigned to be smaller and faster.
Technical specifications of the Pixy2 V2.1 camera sensor :
- Processor: NXP LPC4330, 204 MHz, dual core
- Image sensor: Aptina MT9M114, 1296x976 resolution with integrated image flow processor
- Field of view: 60 degrees horizontal, 40 degrees vertical
- Dimensions:1.5” x 1.65” x 0.6”
- Arduino cable, USB cable and mounting brackets included
Anonymous A. published the 03/01/2020 following an order made on 24/12/2019
Very good, meeting my expectations, I strongly recommend
Anonymous A. published the 29/03/2019 following an order made on 18/03/2019
I wish it could run ..deep learning, I also expected a better resolution camera..
Anonymous A. published the 01/03/2019 following an order made on 17/02/2019
it might be me, but getting the camera to work with my servo's for a pan/tilt system is not quite as easy as I expected. Camera object recognition is OK but servo control is peculiar.
