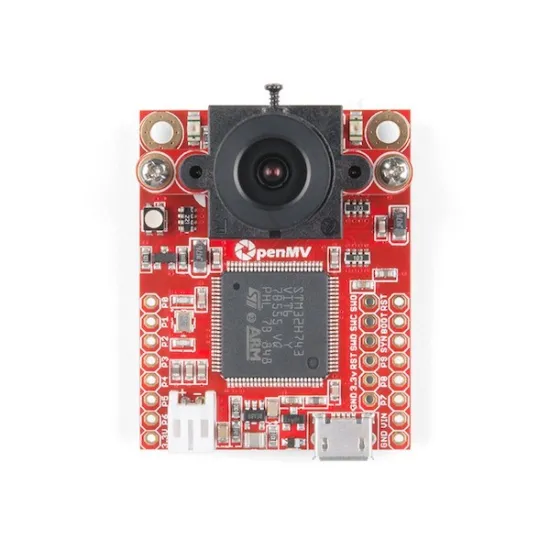

OpenMV H7 Camera Module

OpenMV H7 Camera Module: ease of use, freedom of action

The OpenMV H7 facial recognition camera includes a 400 MHz microcontroller and is compatible with various removable image sensor modules, including the FLIR Lepton sensors (thermal imaging sensors) and the MT9V034 global shutter module (up to 240 FPS in QQVGA mode).

You can program the OpenMV H7 in Python scripts, using the MicroPython OS. It also has an OpenMV IDE that you can download to Linux or Windows. With this IDE, you can not only download and execute your high-level Python scripts but also display the images viewed by the camera and change the viewing settings.

Compatible with both Arduino and Raspberry Pi, the OpenMV H7 Camera Module has numerous inputs/outputs allowing it to control your applications itself (ADC/DAC, PWM, I2C port, serial and SPI, etc.).

An updated OpenMV M7

The OpenMV H7 Camera Module offers significant improvements over its predecessor, the OpenMV M7 camera:

• Its microcontroller is twice as efficient while guaranteeing an energy consumption of about 80 mA less
• The hardware JPEG encoder system offers higher quality image compression in JPEG format
• It features a new JST connector for connecting a LiPo battery, a holder for FLIR Lepton 1, 2 and 3 modules, and interchangeable camera modules
• It also has a high efficiency switching regulator with a 1A output

Technical specifications of the OpenMV Cam H7 module

• 32-bit ARM Cortex-M7 microcontroller @ 400 MHz
• Bandwidth: 1 MB (SRAM); 2 MB (Flash)
• Double-precision Floating Point Unit (FPU)
• Full DSP instructions, hardware JPEG encoding
• Connections: 2 x UART, 2 x I2C, 1 x SPI, 1 CAN, 3 TIM/PWM
• 1 USB full speed port for programming
• 1 RGB LED and 2 IR LEDs on board
• 1 microSD card socket (up to 64 GB/s)
• High efficiency switching regulator (1A output)
• Low noise LDO voltage regulator for sensor analogue supply
• LiPo battery connector
• Consumption: less than 150 mA
• Supports multiple sensors: OV7725 640 x 480 and MT9V034 image sensor modules, FLIR 1, 2 and 3 thermal imaging sensor modules

Includes:

• 1 OpenMV H7 camera
• 2 x 8-pin male connectors
• 2 x 8-pin female stackable connectors

Resources for the OpenMV H7 camera

• OpenMV H7 camera datasheet
• OpenMV Cam Tutorial
• Technical schematic
• Technical schematic (OV7725)
• OV7725 module datasheet
• STM32H743VI module datasheet
• PAM2305AAB330 module datasheet
• Documentation
• Product page
