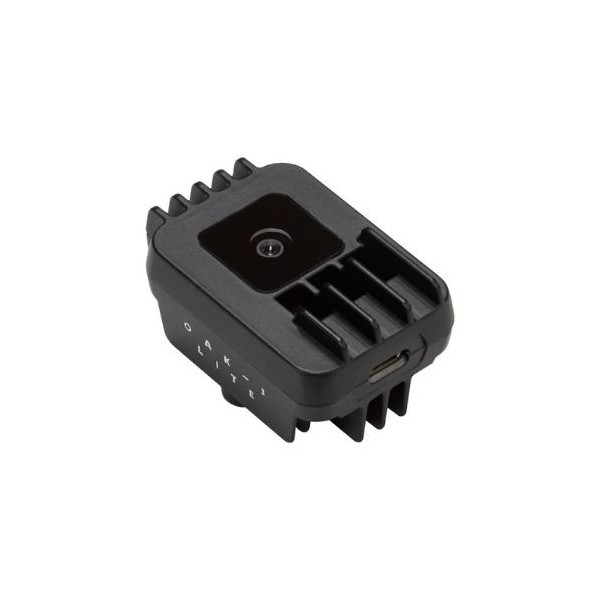

Luxonis OAK-1 Lite Camera
Luxonis OAK-1 Lite Camera
Luxonis OAK-1 Lite Camera
Luxonis OAK-1 Lite Camera
Luxonis OAK-1 Lite Camera
Luxonis OAK-1 Lite Camera
Luxonis OAK-1 Lite Camera
Luxonis OAK-1 Lite Camera

Luxonis OAK-1 Lite Camera

Luxonis OAK-1 Lite Camera
Luxonis | A-000000-06322
123.55 €
20 perc. French VAT inc.

Looking for a compact, efficient yet affordable camera? Check out this OAK-1 Lite!

RGB FOCUS CAMERA
-- Please select an item --
  • Auto-focus
  • Fixed-focus
Quantity
3 Available

Get it in 24/48h! (see T&C)

Ask for a quote

Size Chart
x
Size Chart
Payment methods (see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer

The cheapest Luxonis camera

OAK-1 Lite is the stripped-down version of OAK-1. Sold at a more affordable price, the only difference between these two models is their colour camera sensor: OAK-1 Lite uses IMX214, while OAK-1 uses IMX378, which is a higher quality colour camera. Apart from that, OAK-1 Lite offers the same features:

  • 4 TOPS of processing power (1.4 TOPS for AI)
  • Real-time image processing, directly on the device
  • Numerous DepthAI features
  • A high-performance SoC
  • An interface integrated directly into Robotics Vision Core 2 (RVC2)

Choosing the right focus

The OAK-1 Lite camera is available in two variants:

  • Auto-focus: recommended for close objects between 10 cm to 50 cm of the device (see video). They can also be manually set to a specific focus position utilizing the DepthAI API.
  • Fixed-focus: recommended for heavy-vibration applications, such as drones, lawnmowers, or vehicles (see video)
Auto-Focus Fixed-Focus
Sensor IMX214 IMX214
DFOV / HFOV / VFOV 81° / 69° / 54° 81° / 69° / 54°
Resolution 13MP (4208x3120) 13MP (4208x3120)
Focus AF 8cm - ∞ FF : 50cm - ∞
Max Framerate 60 FPS 60 FPS

Technical specifications of the OAK-1 Lite RGB camera

  • USB-C connector for both power and communication, supporting USB2 and USB3 protocols (5Gbps / 10Gbps)
  • 4 TOPS of processing power (1.4 TOPS for AI)
  • Run any AI model, even custom architectured/built ones
  • Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
  • Computer vision: warp/dewarp, resize, crop, edge detection, feature tracking
  • Object tracking: 2D and 3D tracking
  • Dimension: 36 x 54.5 x 27.8 mm
  • Weight: 53.1g

Package includes:

  • OAK-1 Lite camera
  • Cleaning cloth

Resources for the OAK-1 Lite depth camera
