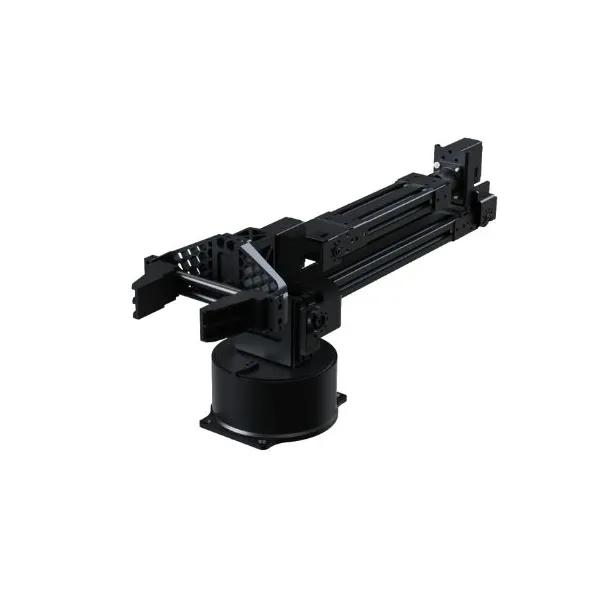

Servo D1 robotic arm for Unitree Go2
Unitree Robotics | A-000000-06589
Price upon request
The Servo robotic arm of Unitree can cooperate with the Go2 quadruped robot. Lightweight and compact, it enables the robot to be even more powerful.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
A 6-axis arm with gripper for light manipulation and robotic integration
The D1 robotic arm is a servo robotic arm designed for integration on the Unitree Go2 platform. It provides 6 degrees of freedom and a jaw clamp (gripper), with a 500 g payload. The control interface is RJ45 and power is supplied at 24 V.
Technical specifications – Go2 robotic arm
- Degrees of freedom: 6 DOF + 1 jaw clamp (gripper)
- Payload: 500 g
- Maximum arm span:
- approx. 495 to 550 mm (excluding jaw length; minor variations may occur with structural updates)
- approx. 620 to 670 mm (including jaw length; minor variations may occur with structural updates)
- Power requirement: 24 V, 2.5 A (max 5 A)
- Power: 60 W
- Power interface: DC 5.5 - 2.1
- Control interface: RJ45
- Joint angle ranges:
- J1: ±135°
- J2: ±90°
- J3: ±90°
- J4: ±135°
- J5: ±90°
- J6: ±135°
The Servo robotic arm of Unitree can cooperate with the Go2 quadruped robot. Lightweight and compact, it enables the robot to be even more powerful.
