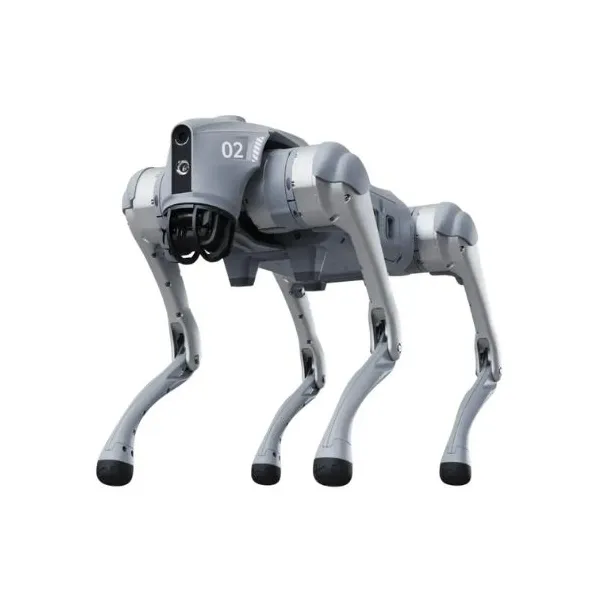

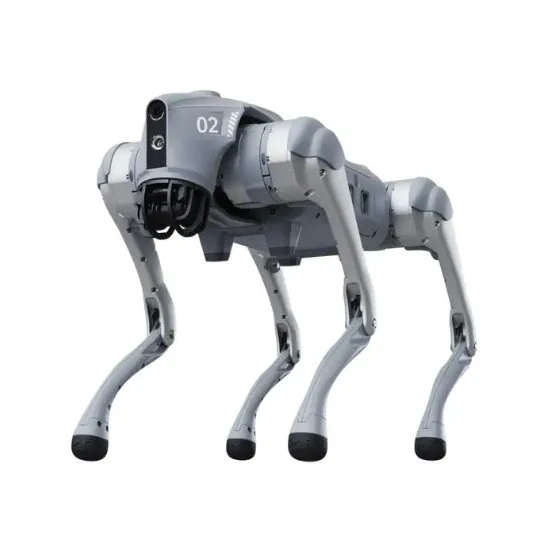

Unitree Go2X quadruped robot
Unitree Robotics | A-000000-08012
€7,200.00
20 perc. French VAT inc.
The Unitree Go2X is a quadruped robotic platform built on an open control architecture, with an SDK and programmable interfaces to serve as a foundation for development, simulation, and testing projects.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
An open quadruped base focused on software integration and custom computing architectures
The Go2X is aimed at teams that want to keep control of their architecture: integrating software components, perception pipelines, and a compute configuration tailored to the project. The platform is ROS-compatible, supports Webots and Gazebo, and is OTA-compatible for updates.
In the product line, the Go2X can be seen as a lighter version of the Go2 EDU: it uses the standard 8000 mAh battery and the standard 33.6 V 3.5 A charger (like the Go2 Air and Pro), and does not include an Nvidia computing module. It also does not have an Intel RealSense depth camera. However, it retains a development-oriented approach with partial secondary development and the same SDK as the EDU version, making it easier to maintain a common software base across models.
The platform is built with aluminum alloys and composite materials and is designed for continuous operation. Depending on the configuration, it can carry a set of sensors and modules, including an optional 4D LiDAR, a camera system, an IMU, a GPS module, and wireless communications (WiFi 6, Bluetooth 5.2, 4G / eSIM).
Application areas
- R&D in mobile robotics: locomotion, motion control, and AI-based approaches.
- Education: robotics, sensors, automation, software integration, and hands-on labs.
- Custom architecture development: integration of onboard compute or specific hardware based on project constraints.
- Simulation and validation: iterations in Webots/Gazebo, then tests on the real platform.
- Autonomous navigation: experimentation with localization, mapping, and interaction via sensors and the SDK.
- Multi-robot robotics: swarm scenarios where software consistency and cost per unit influence platform choice.
Technical specifications of the Go2X quadruped robot
- Dimensions (standing): 70 × 31 × 40 cm
- Dimensions (crouched): 76 × 31 × 20 cm
- Weight (including battery): approx. 15 kg
- Materials: aluminum alloy + high-strength engineering plastic
- Voltage: 28 V to 33.6 V
- Maximum working power: approx. 3000 W
- Payload: approx. 7 kg (max ~ 10 k2)
- Speed: 0 to 3.7 m/s
- Max obstacle height (step/climbing drop): approx. 16 cm
- Maximum slope: 40°
- Base computing: high-performance 8-core CPU
- Max joint torque (knee): approx. 45 N·m
- Aluminum knee motors: 12 set
- Battery: standard 8000 mAh
- Runtime: approx. 1 to 2 h
- Charger: 33.6 V 3.5 A
The Unitree Go2X is a quadruped robotic platform built on an open control architecture, with an SDK and programmable interfaces to serve as a foundation for development, simulation, and testing projects.
