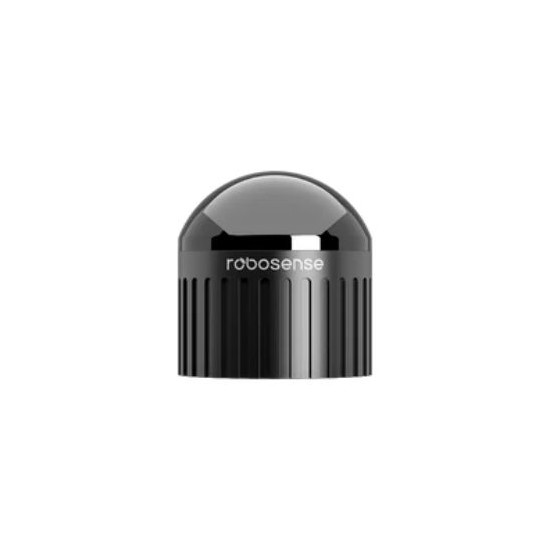

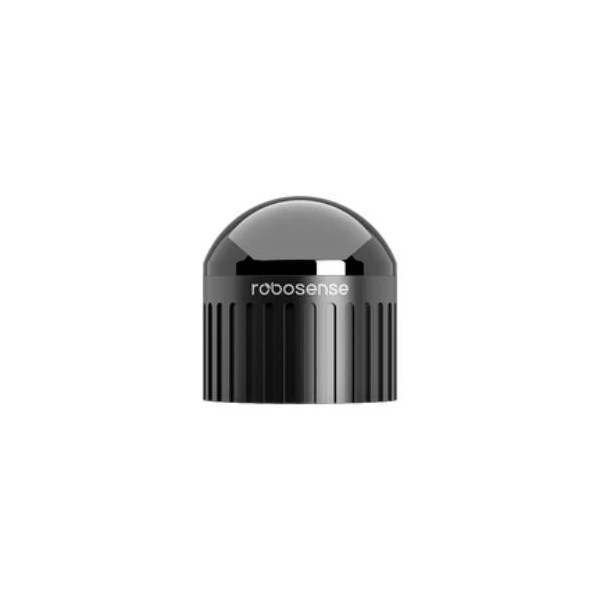

Robosense Airy LiDAR (with accessories)
Robosense | A-000000-07700
€1,320.00
20 perc. French VAT inc.
Robosense’s Airy LiDAR delivers precise hemispherical vision in an ultra-compact format, ideal for robotic navigation and mapping.
Payment methods
(see T&C)
Debit card
PayPal
Payment by invoice
Wire transfer
96 beams in a LiDAR smaller than a ping-pong ball
Airy is the first digital hemispherical LiDAR from Robosense's R platform. Featuring a chip-based transceiver and high-sensitivity digital detection technology, it offers an exceptional 360° horizontal and 90° vertical field of view in a format as small as a ping-pong ball.
With ±1 cm accuracy, 96 beams, and a point rate of 860,000 points per second, Airy enables real-time detection of object size, contour, and distance. Its structured and rich point cloud simplifies obstacle avoidance, mapping, and navigation in complex environments.
Compact Design and Flexible Integration
With only 60 mm in diameter and weighing less than 240 g, Airy fits easily into all types of robots, even the most compact ones. Its low power consumption (< 8W) ensures stable, long-term operation.
Full Coverage, Maximum Performance
Its unique opto-mechanical system enables full coverage of 360° horizontal and 90° vertical, with a range of up to 60 meters. Perfect for mapping, obstacle detection, localization, and trajectory planning — even over long distances.
High-Definition Point Cloud
With its 96 beams, Airy generates dense and accurate point clouds with ±1 cm detection precision. It easily detects small static or moving objects, ensuring safety and reliability indoors and outdoors.
Integrated Digital Architecture
Airy uses next-gen VCSEL emitter chips and high-sensitivity SPAD-SOC sensors. Its fully digital architecture ensures no signal loss and outstanding performance while minimizing size.
Advanced Features
- Efficient 3D SLAM: For indoor and outdoor mapping
- High-precision detection: Up to ±1 cm
- Small animal detection: Accurate sensing on grass, concrete, etc.
Example Applications
- Quadruped Robots
- AGV / AMR
- Autonomous Forklifts
- Service Robots
- Smart Ports
- Humanoid Robots
Robosense Airy LiDAR Technical Specifications
- Hemispherical Field of View: 360° × 90°
- Accuracy: ±1 cm
- Resolution: 96 beams
- Integrated IMU
- Points per second (single return mode): 860,000 pts/s
- Points per second (dual return mode): 1,720,000 pts/s
- Dimensions: φ60 × H63 mm
- Weight: < 240 g
- Range: up to 30 m at 10% reflectivity
- Max Range: 60 m
- Power Consumption: < 8W
- Angular Resolution (H × V): 0.4° × 0.47°
- Frame Rate: 10 Hz
- Ethernet: 100Base-TX
- Operating Temperature: -40°C to +60°C
- Output: UDP packets over Ethernet
- Operating Voltage: 9V ~ 32V
- Ingress Protection: IP67, IP6K9K
Robosense’s Airy LiDAR delivers precise hemispherical vision in an ultra-compact format, ideal for robotic navigation and mapping.
